Wieland WK 4 Knife Disconnect Terminal Block
Wieland WK 4 Knife Disconnect Terminal Block
SKU:DIN-79ba89
Reliable Wieland WK 4 Knife Disconnect Terminal Block for secure connections and easy installation.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland WK 4 Knife Disconnect Terminal Block
$29.99
Quantity: 1
Claim Your Seller Account
Wieland WK 4 Knife Disconnect Terminal Block
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

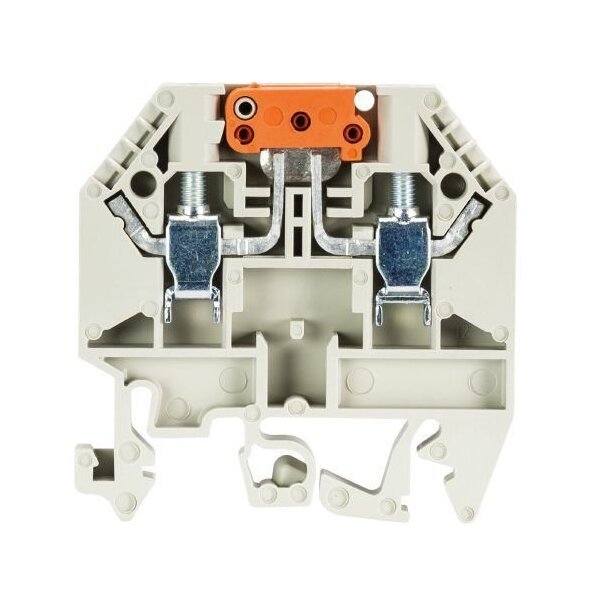

The Wieland WK 4 TKM/U/V0 Knife Disconnect Terminal Block is a top-of-the-line solution for secure electrical connections. Featuring a 4mm² nominal cross-section, rated for 20A at 800V, this gray terminal block ensures reliable performance. With screw connections and DIN Rail mounting capability, it delivers ease of installation on TS 35 and TS 32. Compliant with V0 inflammability class and UL94 insulation standards, it guarantees safety and durability in diverse environments.
Product Specifications
Classification Eclass 81 Classification
27141126
Classification Etim 30 Classification
EC000902
Classification Etim 40 Classification
EC000902
Classification Etim 50 Classification
EC000902
Classification Etim 60 Classification
EC000902
Classification Etim 70 Classification
EC000902
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Wire Strip Length
9 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WK 4 TKM/U/V0
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
6 mm
Note Integrated Test Socket
No
Technical Data Closing Plate Required
Yes
Technical Data Length
48 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Current
20 A
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
22-10 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-10 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
20 A
Technical Data Ulcsa Factory Wiring Current
20 A
Technical Data Ulcsa Field Wiring Current
20 A
Technical Data Ulcsa Torque Conductor Mounting
0.5 N·m
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
