Wieland WK 4/THSI5 U/V0 Fuse Terminal Block for DIN Rail Mounting
Wieland WK 4/THSI5 U/V0 Fuse Terminal Block for DIN Rail Mounting
SKU:DIN-21445a
Reliable Wieland WK 4/THSI5 U/V0 Fuse Terminal Block for secure electrical connections on DIN rails.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland WK 4/THSI5 U/V0 Fuse Terminal Block for DIN Rail Mounting
$24.99
Quantity: 1
Claim Your Seller Account
Wieland WK 4/THSI5 U/V0 Fuse Terminal Block for DIN Rail Mounting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

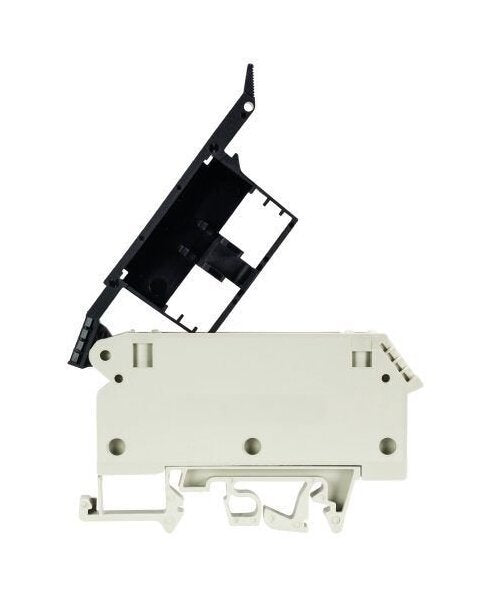

The Wieland WK 4/THSI5 U/V0 Fuse Terminal Block is a high-quality solution for secure electrical connections in industrial settings. With a nominal cross-section of 4 mm², this gray terminal block features a screw connection design for reliable installations on TS 35 and TS 32. It is equipped with a G-Fuse insert (5 x 20 mm) rated at 6.3 A and 800 V maximum rated voltage, ensuring efficient and safe power distribution. The terminal block's V0 inflammability class and PA666 insulating housing meet stringent industry standards for fire safety and durability. Designed for DIN rail mounting, this terminal block is compact, measuring 77.2 mm in length, and is compatible with solid and fine-stranded wires ranging from 0.5 to 6 mm².
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141116
Classification Etim 30 Classification
EC000899
Classification Etim 40 Classification
EC000899
Classification Etim 50 Classification
EC000899
Classification Etim 60 Classification
EC000899
Classification Etim 70 Classification
EC000899
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Wire Strip Length
8 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WK 4/THSI5 U/V0
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
4 mm²
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
8 mm
Note Remark To Maximum Rated Voltage
Note max power loss
Note Remark To Rated Current
Note max power loss
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Closing Plate Required
No
Technical Data Fuse Insert
G-Fuse
Technical Data Fuse Insert Size
5 x 20 mm

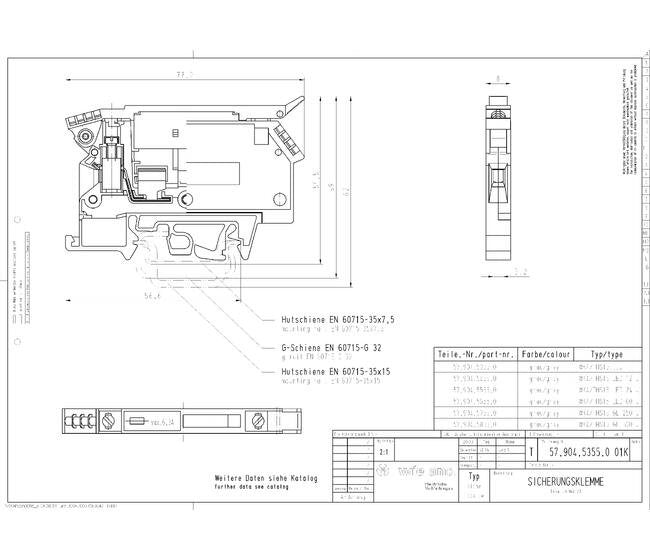

Technical Data Length
77.2 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Current
6.3 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
