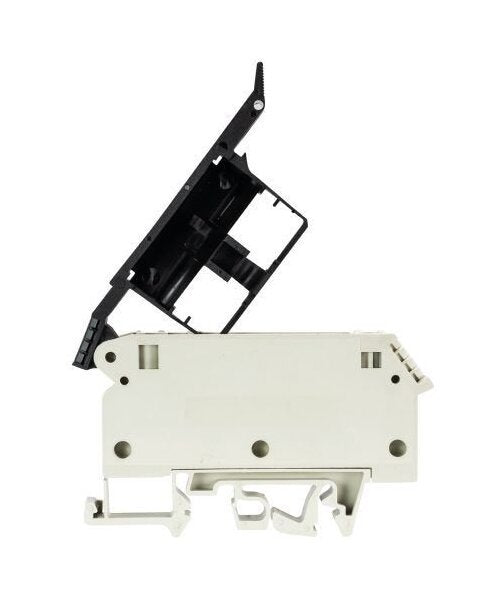

Wieland WK 4/THSI6 800V Fuse Terminal Block
Wieland WK 4/THSI6 800V Fuse Terminal Block
SKU:DIN-c133e9
Secure and reliable Wieland WK 4/THSI6 800V Fuse Terminal Block for DIN Rail installations.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Wieland WK 4/THSI6 800V Fuse Terminal Block
$39.99
Quantity: 1
Claim Your Seller Account
Wieland WK 4/THSI6 800V Fuse Terminal Block
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland WK 4/THSI6 800V Fuse Terminal Block is a top-of-the-line solution for electrical installations, featuring a G-Fuse insert with a rated current of 10A and a maximum voltage capacity of 800V. This DIN Rail Terminal Block ensures secure connections with screw connections, accommodating solid cross-sections from 0.5mm² to 6mm². The terminal block's durable construction with PA666 insulating housing and V0 inflammability class meets rigorous industry standards for safety and reliability. Ideal for critical applications requiring high impulse resistance and efficient operation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141116
Classification Etim 30 Classification
EC000899
Classification Etim 40 Classification
EC000899
Classification Etim 50 Classification
EC000899
Classification Etim 60 Classification
EC000899
Classification Etim 70 Classification
EC000899
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Wire Strip Length
8 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WK 4/THSI6
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
4 mm²
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
10 mm
Note Remark To Maximum Rated Voltage
Note max power loss
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Closing Plate Required
No
Technical Data Fuse Insert
G-Fuse
Technical Data Fuse Insert Size
6.3 x 32 mm
Technical Data Length
77.2 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Current
10 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
20-10 AWG
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
