Wieland WK 4/THSI6 Fuse Terminal Block - 250V Rated Voltage
Wieland WK 4/THSI6 Fuse Terminal Block - 250V Rated Voltage
SKU:DIN-ad5816
High-quality Wieland WK 4/THSI6 Fuse Terminal Block with 10A current, 250V voltage, and screw connections. DIN rail mountable for industrial use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland WK 4/THSI6 Fuse Terminal Block - 250V Rated Voltage
$24.99
Quantity: 1
Claim Your Seller Account
Wieland WK 4/THSI6 Fuse Terminal Block - 250V Rated Voltage
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

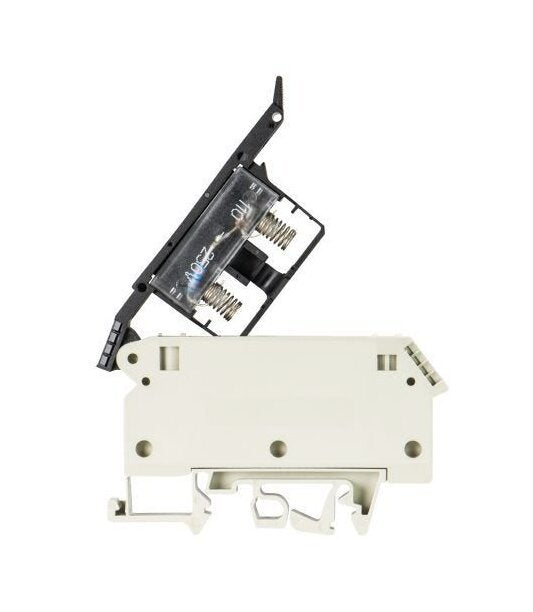

The Wieland WK 4/THSI6 Fuse Terminal Block is a high-quality solution for electrical installations, featuring a 10A rated current and 250V maximum rated voltage. With a G-Fuse insert and screw connections, this terminal block ensures reliable conductivity. Its UL94 V0-rated thermoplastic insulation material guarantees safety, meeting stringent standards for insulation flammability. Designed for DIN rail mounting, this gray terminal block is ideal for industrial and institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141116
Classification Etim 30 Classification
EC000899
Classification Etim 40 Classification
EC000899
Classification Etim 50 Classification
EC000899
Classification Etim 60 Classification
EC000899
Classification Etim 70 Classification
EC000899
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Wire Strip Length
8 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WK 4/THSI6
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
4 mm²
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
10 mm
Note Defect Indicator
Glow lamp
Note Maximum Operating Voltage Of Defective Display
250 V
Note Minimum Operating Voltage Of Defective Display
110 V
Note Remark To Maximum Rated Voltage
Note max power loss
Note Remark To Rated Current
Note max power loss
Note Voltage Type For Defect Indication
Alternating Current (AC)/Direct Current (DC)
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Closing Plate Required
No
Technical Data Fuse Insert Size
6.3 x 32 mm
Technical Data Maximum Rated Voltage
250 V
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Voltage Canadian Standards Association Csa
250 V
