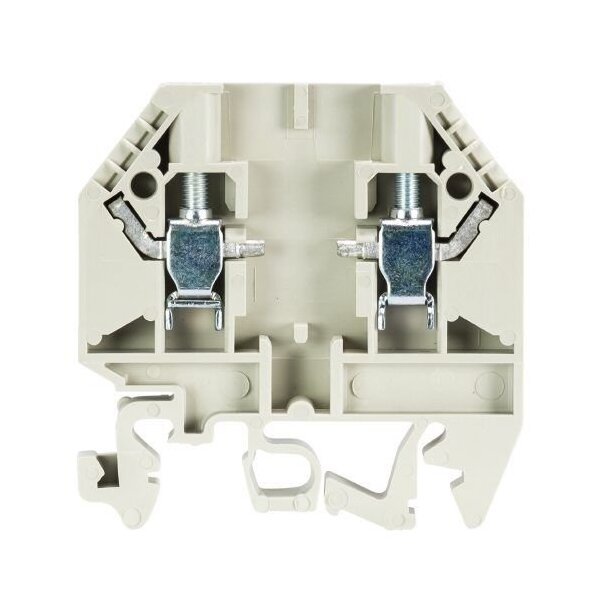

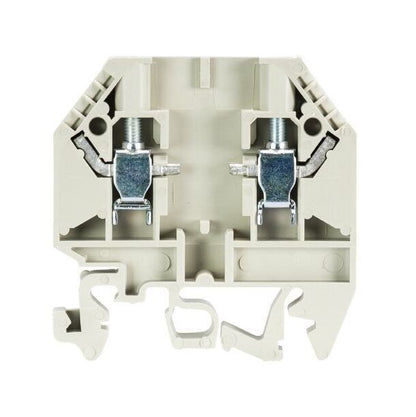

Wieland WK 4 TKG/U/V0 Fuse Terminal Block
Wieland WK 4 TKG/U/V0 Fuse Terminal Block
SKU:DIN-a5f870
High-quality Wieland WK 4 TKG/U/V0 Fuse Terminal Block for secure and reliable electrical connections in industrial and commercial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland WK 4 TKG/U/V0 Fuse Terminal Block
$24.99
Quantity: 1
Claim Your Seller Account
Wieland WK 4 TKG/U/V0 Fuse Terminal Block
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland WK 4 TKG/U/V0 Fuse Terminal Block is a high-quality disconnect block designed for fuse holders, component plugs, and fuse disconnect levers. It features a screw connection for easy mounting on standard TS 35 and TS 32 rails. With a nominal cross-section of 4 mm² and a V0 inflammability class, this gray terminal block offers reliability and safety in electrical installations. Rated for a maximum voltage of 800 V and with impressive technical specifications, it ensures secure connections and efficient power distribution. Suitable for industrial, commercial, and government applications, this terminal block is a versatile solution for various setups.
Product Specifications
Classification Eclass 81 Classification
27141126
Classification Etim 30 Classification
EC000902
Classification Etim 40 Classification
EC000902
Classification Etim 50 Classification
EC000902
Classification Etim 60 Classification
EC000902
Classification Etim 70 Classification
EC000902
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Wire Strip Length
9 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WK 4 TKG/U /V0
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
6 mm
Note Integrated Test Socket
No
Note Remark To Rated Current
Note Fuse Insert
Product Compliance Reach Svhc Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
48 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
20-10 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-10 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
6.3 A
Technical Data Ulcsa Factory Wiring Current
10 A
Technical Data Ulcsa Field Wiring Current
10 A
Technical Data Ulcsa Torque Conductor Mounting
0.5 N·m
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
