Wieland WK 4 TKS D/U V0 Feed-Through Terminal Block
Wieland WK 4 TKS D/U V0 Feed-Through Terminal Block
SKU:DIN-686687
Reliable Wieland WK 4 TKS D/U V0 Feed-Through Terminal Block for secure DIN rail installations. 4mm², 32A, TS 35/32 mount, UL94 V0 insulation.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland WK 4 TKS D/U V0 Feed-Through Terminal Block
$24.99
Quantity: 1
Claim Your Seller Account
Wieland WK 4 TKS D/U V0 Feed-Through Terminal Block
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

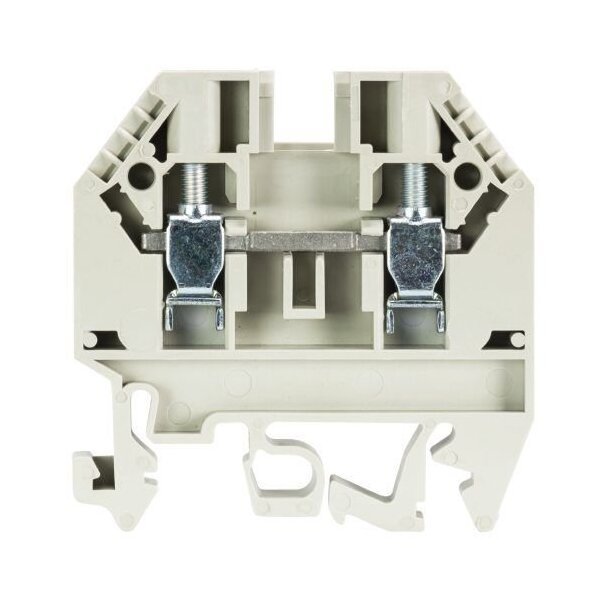

The Wieland WK 4 TKS D/U V0 Feed-Through Terminal Block is a high-quality DIN rail terminal block designed for secure and reliable electrical installations. With a nominal cross section of 4 mm², it offers a rated current of 32 A and a maximum rated voltage of 800 V, ensuring efficient power distribution. This gray terminal block features a screw connection for easy mounting on TS 35 and TS 32 rails, with UL94 V0-rated insulation material for safety. Compliant with RoHS and REACH-SVHC standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Wire Strip Length
9 mm
General Brands
Wieland
General Color
Gray
General Explosion Tested Version Ex E
No
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WK 4 TKS D/U V0
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
6 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
48 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Current
32 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
20-10 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-10 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
20 A
Technical Data Ulcsa Factory Wiring Current
25 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
