Wieland WK 4E/U/V0 Multi-Tier Terminal Block
Wieland WK 4E/U/V0 Multi-Tier Terminal Block
SKU:DIN-f80776
Wieland WK 4E/U/V0 Multi-Tier Terminal: 4 mm², Gray, 2 Levels, Screw Connection, DIN Rail Mounting
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland WK 4E/U/V0 Multi-Tier Terminal Block
$24.99
Quantity: 1
Claim Your Seller Account
Wieland WK 4E/U/V0 Multi-Tier Terminal Block
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

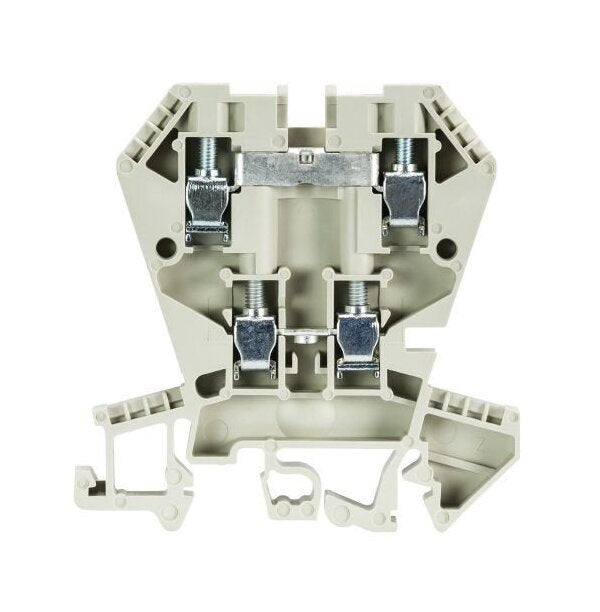

The Wieland WK 4E/U/V0 Multi-Tier Terminal Block is a high-quality solution for efficient electrical connections. With a nominal cross section of 4 mm² and a width of 6 mm, this terminal block features 2 levels with 2 clamp positions per level, ensuring secure connections. The gray color and PA666 insulating housing add durability and visibility. Meeting UL94 V0 flammability standards and offering a rated current of 32 A and a maximum voltage of 400 V, this terminal block is reliable and safe for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Connection Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
4 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Torque Conductor Mounting
0.5 N·m
Connection Data Wire Strip Length
9 mm
General Color
Gray
General Explosion Tested Version Ex E
No
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
2
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
6 mm
Technical Data Closing Plate Required
Yes
Technical Data Length
61.6 mm
Technical Data Maximum Rated Voltage
400 V
Technical Data Pollution Degree
3
Technical Data Rated Current
32 A
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
22-12 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-12 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
10 A
Technical Data Ulcsa Current Factory Wiring
20 A
Technical Data Ulcsa Current Field Wiring
20 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
