Wieland WK/5-10S/U/V0 Distribution Terminal Blocks
Wieland WK/5-10S/U/V0 Distribution Terminal Blocks
SKU:DIN-f8f67d
High-performance Wieland WK/5-10S/U/V0 Distribution Terminal Blocks with 5 clamp positions, 20A current, and 800V voltage rating.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland WK/5-10S/U/V0 Distribution Terminal Blocks
$29.99
Quantity: 1
Claim Your Seller Account
Wieland WK/5-10S/U/V0 Distribution Terminal Blocks
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

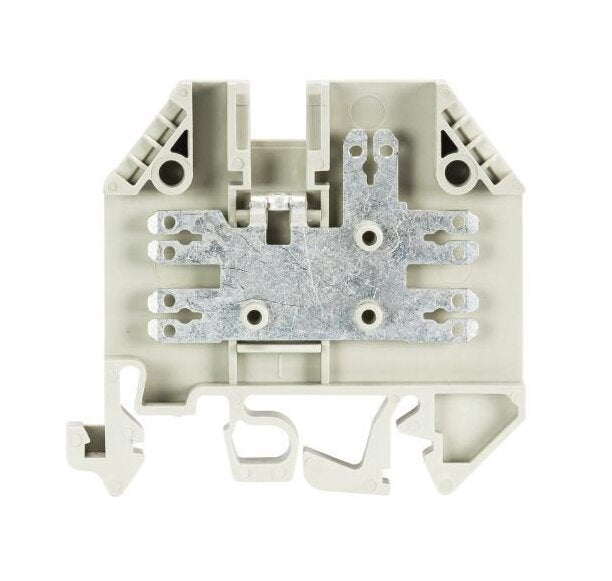

The Wieland WK/5-10S/U/V0 Distribution Terminal Blocks are engineered for reliable electrical installations. These gray terminal blocks feature one level with 5 clamp positions per level, a width of 6mm, and an insulating housing made of high-quality PA666 ensuring durability. With a rated current of 20A and a maximum voltage of 800V, these blocks are designed for optimal performance. Compliant with RoHS and REACH-SVHC standards, they offer secure flat connections and meet essential technical specifications for seamless integrations.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Flat Connection
Connection Data Connection Type 2
Flat Connection
General Brands
Wieland
General Color
Gray
General Explosion Tested Version Ex E
No
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WK/5-10S/U/V0
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Number Of Clamp Positions Per Level
5
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
6 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
52.5 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Current
20 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
22-12 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
10 A
Technical Data Ulcsa Factory Wiring Current
10 A
Technical Data Ulcsa Field Wiring Current
10 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
