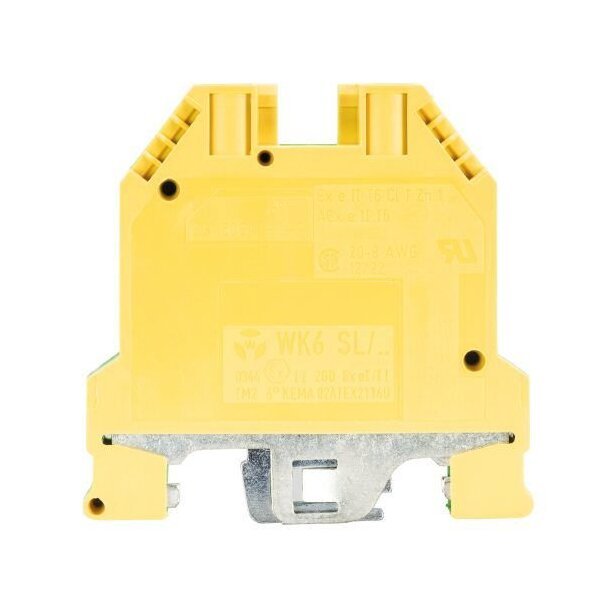

Wieland WK 6 SL/U Earth Terminal Block
Wieland WK 6 SL/U Earth Terminal Block
SKU:DIN-7feadd
Top-quality Wieland WK 6 SL/U Earth Terminal Block with 6mm² nominal cross section, screw connection, and V0 inflammability rating for secure electrical grounding.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Wieland WK 6 SL/U Earth Terminal Block
$12.99
Quantity: 1
Claim Your Seller Account
Wieland WK 6 SL/U Earth Terminal Block
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland WK 6 SL/U Earth Terminal Block is a top-quality solution for grounding applications in electrical installations. With a nominal cross section of 6mm² and a sturdy screw connection, this terminal block ensures secure mounting on TS 35 and TS 32 rails. Its green/yellow color makes it easily identifiable, meeting industry standards for safety and compliance. Featuring insulation material rated V0 for inflammability per UL standards, this terminal block is explosion-tested ("E.x. e") and suitable for a maximum rated voltage of 800V. With precise technical specifications and compliance with RoHS and REACH-SVHC regulations, this terminal block is a reliable choice for both consumer and institutional buyers.
Product Specifications
Classification Eclass 81 Classification
27141141
Classification Etim 40 Classification
EC000901
Classification Etim 50 Classification
EC000901
Classification Etim 60 Classification
EC000901
Classification Etim 70 Classification
EC000901
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Torque Conductor Mounting
0.5 N·m
Connection Data Torque Rail Mounting
0.5 N·m
Connection Data Wire Strip Length
9 mm
General Brands
Wieland
General Color
Green/Yellow
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WK 6 SL/U
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
6 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
8 mm
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Closing Plate Required
No
Technical Data Length
51 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
20-10 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-10 AWG
