Wieland WK 6/U /V0 Feed-Through Terminal Block
Wieland WK 6/U /V0 Feed-Through Terminal Block
SKU:DIN-0bd7fd
Reliable Wieland WK 6/U /V0 Terminal Block for secure electrical connections. DIN rail mountable, RoHS compliant, with 6 mm² cross-section.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland WK 6/U /V0 Feed-Through Terminal Block
$29.99
Quantity: 1
Claim Your Seller Account
Wieland WK 6/U /V0 Feed-Through Terminal Block
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

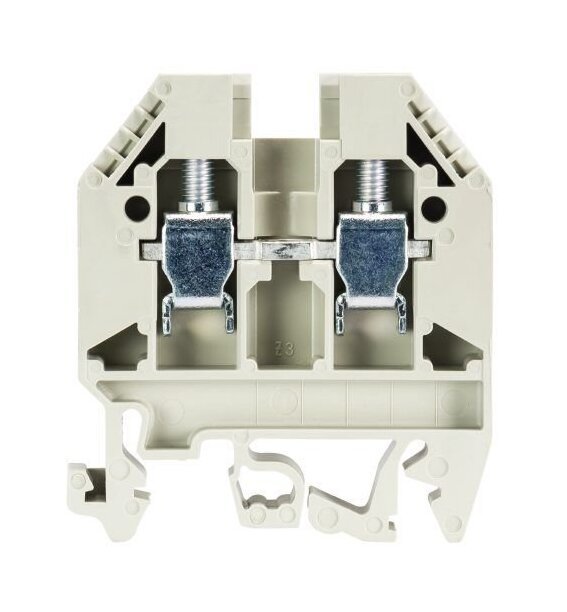

The Wieland WK 6/U /V0 Feed-Through Terminal Block is a reliable solution for electrical installations, featuring a 6 mm² nominal cross-section, 41 A rated current, and a V0 inflammability class. With PA666 insulating housing, this terminal block is suitable for DIN rail mounting on TS 35 and TS 32, providing secure connections for various wire sizes. Compliant with RoHS regulations, UL/CSA standards, and explosion-tested for safe use in hazardous environments, this terminal block ensures efficient and secure electrical connectivity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
6 mm²
Connection Data Maximum Solid Cross Section
10 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Wire Strip Length
11 mm
General Brands
Wieland
General Color
Gray
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WK 6/U /V0
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
6 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
8 mm
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
48 mm
Technical Data Maximum Rated Voltage
1000 V
Technical Data Pollution Degree
3
Technical Data Rated Current
41 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
20-8 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-8 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
45 A
Technical Data Ulcsa Factory Wiring Current
50 A
Technical Data Ulcsa Field Wiring Current
50 A
Technical Data Ulcsa Torque Conductor Mounting
1.2 N·m
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
