Wieland WKF 1,5 D1/2/35 Feed-Through Terminal Block
Wieland WKF 1,5 D1/2/35 Feed-Through Terminal Block
SKU:DIN-b28203
Top-tier DIN Rail Terminal Block with 1.5 mm² cross-section, V0 inflammability, and spring clamp connection for secure electrical installations.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland WKF 1,5 D1/2/35 Feed-Through Terminal Block
$24.99
Quantity: 1
Claim Your Seller Account
Wieland WKF 1,5 D1/2/35 Feed-Through Terminal Block
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

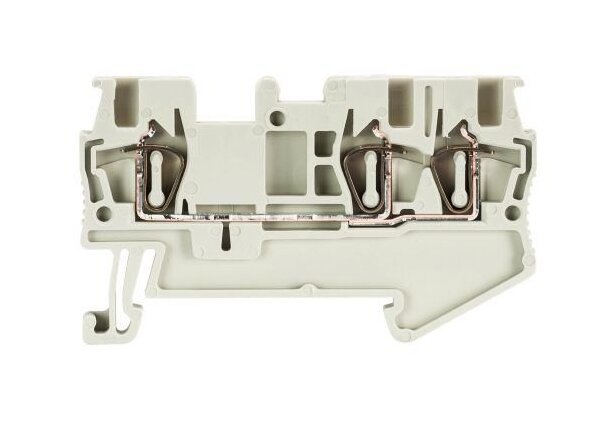

The Wieland WKF 1,5 D1/2/35 Feed-Through Terminal Block is a top-tier DIN Rail Terminal Block designed for seamless installation on TS35 rails. With a nominal cross-section of 1.5 mm² and a solid gray color, this terminal block offers a reliable spring clamp connection with 3 clamp positions per level. Rated at 17.5 A and 500 V, this block is explosion-tested and complies with V0 inflammability standards, ensuring safety and performance. Its compact design, measuring 60.4 mm in length and featuring a PA666 insulating housing, guarantees efficient electrical installations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Spring Clamp Connection
Connection Data Maximum Fine Stranded Cross Section
1.5 mm²
Connection Data Maximum Solid Cross Section
1.5 mm²
Connection Data Minimum Fine Stranded Cross Section
0.08 mm²
Connection Data Minimum Solid Cross Section
0.08 mm²
Connection Data Wire Strip Length
10 mm
General Brands
Wieland
General Color
Gray
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKF 1,5 D1/2/35
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
1.5 mm²
General Number Of Clamp Positions Per Level
3
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
4.15 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes

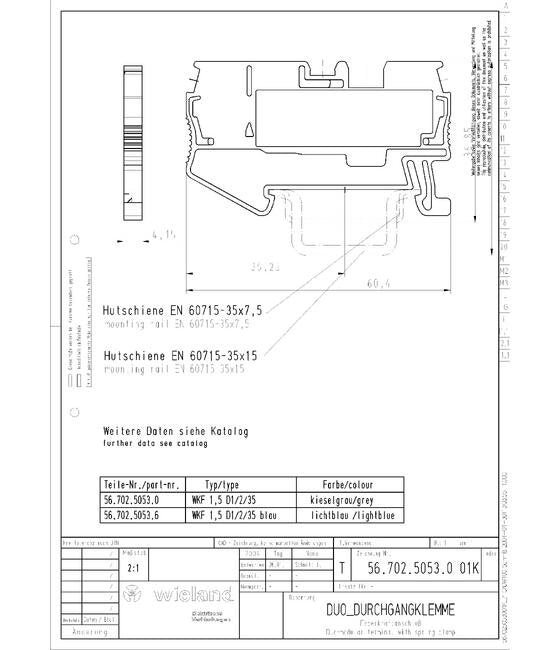

Technical Data Length
60.4 mm
Technical Data Maximum Rated Voltage
500 V
Technical Data Pollution Degree
3
Technical Data Rated Current
17.5 A
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
26-14 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
26-14 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
15 A
Technical Data Ulcsa Factory Wiring Current
15 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
