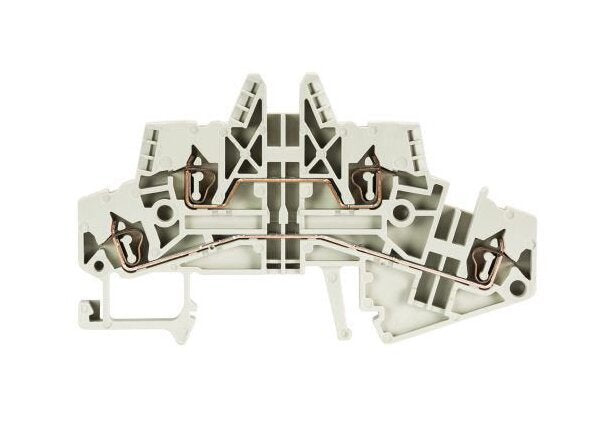

The Wieland WKF 1.5 E/35 Multi-Tier Terminal is a high-quality duo feed-through terminal designed for mounting on TS 35. With a nominal cross-section of 1.5 mm² and a width of 5mm, this terminal in gray color offers excellent performance and reliability. It features tension spring connections, 2 levels with 2 clamp positions each, and an insulating housing made of PA666 for durability. Rated for a current of 17.5A, a maximum voltage of 400V, and meeting V0 flammability standards, this terminal block is ideal for electrical installations requiring secure connections on DIN rails.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC00089
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Spring Clamp Connection
Connection Data Maximum Fine Stranded Connection Cross Section
1.5 mm²
Connection Data Maximum Solid Cross Section
2.5 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.13 mm²
Connection Data Minimum Solid Cross Section
0.13 mm²
Connection Data Wire Strip Length
8 mm
General Color
Gray
General Explosion Tested Version Ex E
No
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
1.5 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
2
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
5 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Specifications Mounting Size
35 x 7.5 mm
Technical Data Closing Plate Required
Yes
Technical Data Length
83.4 mm
Technical Data Maximum Rated Voltage
400 V
Technical Data Pollution Degree
3
Technical Data Rated Current
17.5 A
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
30-14 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
30-14 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
15 A
Technical Data Ulcsa Current Factory Wiring
15 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
