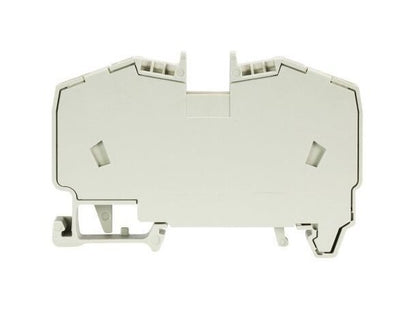

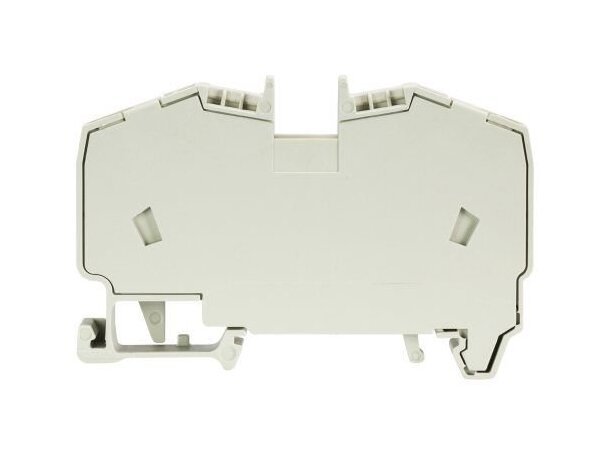

Wieland WKF 10/35 Feed-Through Terminal Block
Wieland WKF 10/35 Feed-Through Terminal Block
SKU:DIN-bd258b
Efficient feed-through terminal block with tension spring connection, suitable for DIN Rail mounting. Rated for 57A and 800V.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland WKF 10/35 Feed-Through Terminal Block
$24.99
Quantity: 1
Claim Your Seller Account
Wieland WKF 10/35 Feed-Through Terminal Block
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland WKF 10/35 Feed-Through Terminal Block is a reliable solution for electrical installations. With a tension spring connection and DIN Rail mounting compatibility, this terminal block offers a secure and efficient connection. It features a 10 mm² nominal cross-section, rated current of 57A, and maximum rated voltage of 800V, ensuring high performance and safety. The gray PA666 insulating housing, V0 inflammability class, and compliance with RoHS and REACH-SVHC standards enhance its usability in diverse environments.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Spring Clamp Connection
Connection Data Maximum Fine Stranded Cross Section
10 mm²
Connection Data Maximum Solid Cross Section
10 mm²
Connection Data Minimum Fine Stranded Cross Section
2.5 mm²
Connection Data Minimum Solid Cross Section
2.5 mm²
Connection Data Wire Strip Length
13 mm
General Brands
Wieland
General Color
Gray
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKF 10/35
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
10 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
10 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
No
Technical Data Length
70 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Current
57 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
14-8 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
14-8 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
65 A
Technical Data Ulcsa Factory Wiring Current
55 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
