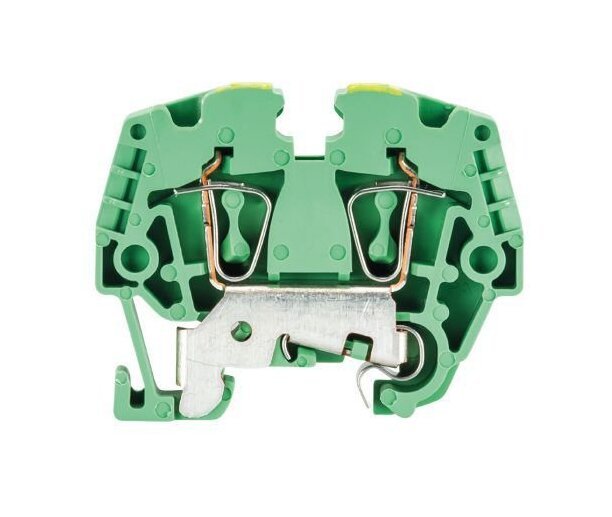

Wieland WKF 2.5 SL/35 Green/Yellow Earth Terminal Block
Wieland WKF 2.5 SL/35 Green/Yellow Earth Terminal Block
SKU:DIN-36c977
Securely ground electrical installations with the Wieland WKF 2.5 SL/35 Earth Terminal Block featuring 2.5 mm² cross section and DIN rail mount.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Wieland WKF 2.5 SL/35 Green/Yellow Earth Terminal Block
$12.99
Quantity: 1
Claim Your Seller Account
Wieland WKF 2.5 SL/35 Green/Yellow Earth Terminal Block
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland WKF 2.5 SL/35 Earth Terminal Block is an essential component for electrical installations, featuring a nominal cross section of 2.5 mm² and a sturdy DIN rail mounting method. With a spring clamp connection and V0-rated insulating housing, this terminal block ensures secure and reliable grounding. It meets RoHS and REACH-SVHC conformity standards, making it environmentally friendly and compliant with industry regulations.
Product Specifications
Classification Eclass 81 Classification
27141141
Classification Etim 30 Classification
EC000901
Classification Etim 40 Classification
EC000901
Classification Etim 50 Classification
EC000901
Classification Etim 60 Classification
EC000901
Classification Etim 70 Classification
EC000901
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Spring Clamp Connection
Connection Data Maximum Fine Stranded Cross Section
2.5 mm²
Connection Data Maximum Solid Cross Section
4 mm²
Connection Data Minimum Fine Stranded Cross Section
0.13 mm²
Connection Data Minimum Solid Cross Section
0.13 mm²
Connection Data Wire Strip Length
11 mm
General Brands
Wieland
General Color
Green/Yellow
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKF 2,5 SL/35
General Mounting Method
DIN Rail (Top Hat Rail)
General Mounting Size
35 x 7.5 mm
General Nominal Cross Section
2.5 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
5 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
57 mm
Technical Data Pollution Degree
3
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
24-12 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-12 AWG
