Wieland WKF 6/35 Feed-Through Terminal Block
Wieland WKF 6/35 Feed-Through Terminal Block
SKU:DIN-a808d6
Secure and efficient Wieland WKF 6/35 Terminal Block for industrial use. Nominal cross-section of 6 mm², rated current of 41 A, and gray color.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Wieland WKF 6/35 Feed-Through Terminal Block
$15.99
Quantity: 1
Claim Your Seller Account
Wieland WKF 6/35 Feed-Through Terminal Block
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

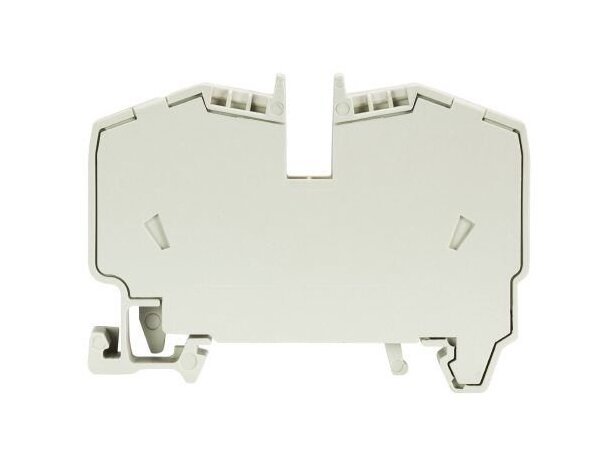

The Wieland WKF 6/35 Feed-Through Terminal Block is a reliable solution designed for industrial applications. This terminal block features a tension spring connection for easy installation on TS35 DIN rails. With a nominal cross-section of 6 mm² and a rated current of 41 A, it ensures efficient and secure electrical connections. The gray-colored block is made of high-quality thermoplastic and meets various industry standards such as UL94 V0 for insulation material flammability and RoHS compliance for environmental safety.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Spring Clamp Connection
Connection Data Maximum Fine Stranded Cross Section
6 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Wire Strip Length
12 mm
General Brands
Wieland
General Color
Gray
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKF 6/35
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
6 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
8 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
No
Technical Data Length
61 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Current
41 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
20-10 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
20-10 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
47 A
Technical Data Ulcsa Factory Wiring Current
40 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
