Wieland WKF 6SL/35 Earth Terminal Block
Wieland WKF 6SL/35 Earth Terminal Block
SKU:DIN-66f11d
High-quality Wieland WKF 6SL/35 Earth Terminal Block - 6mm², 800V, DIN Rail Mount, Green/Yellow, RoHS & REACH Compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland WKF 6SL/35 Earth Terminal Block
$24.99
Quantity: 1
Claim Your Seller Account
Wieland WKF 6SL/35 Earth Terminal Block
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

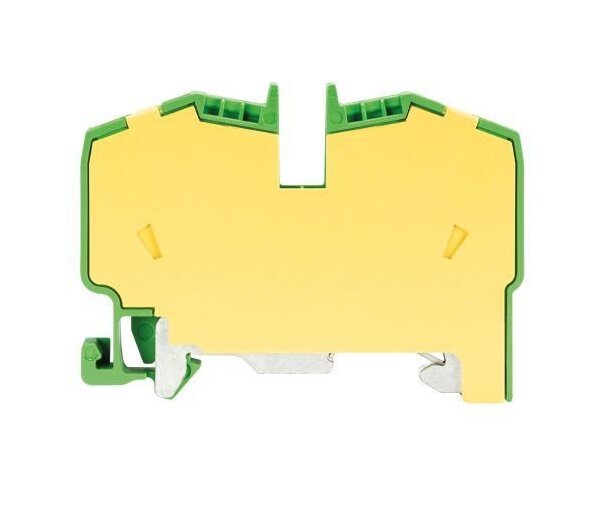

The Wieland WKF 6SL/35 Earth Terminal Block is a high-quality grounding solution designed for industrial applications. With a nominal cross-section of 6mm² and a voltage rating of 800V, this terminal block ensures secure electrical connections. It features a tension spring connection for easy mounting on TS 35 rails and is color-coded in green-yellow for quick identification. The block is explosion-tested, flame-retardant, and compliant with RoHS and REACH regulations, making it a reliable and safe choice for your electrical installations.
Product Specifications
Classification Eclass 81 Classification
27141141
Classification Etim 30 Classification
EC000901
Classification Etim 40 Classification
EC000901
Classification Etim 50 Classification
EC000901
Classification Etim 60 Classification
EC000901
Classification Etim 70 Classification
EC000901
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Spring Clamp Connection
Connection Data Maximum Fine Stranded Cross Section
6 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Wire Strip Length
12 mm
General Brands
Wieland
General Color
Green/Yellow
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKF 6SL/35
General Mounting Method
DIN Rail (Top Hat Rail)
General Mounting Size
35 x 7.5 mm
General Nominal Cross Section
6 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
8 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
No
Technical Data Height
8 mm
Technical Data Length
61 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
20-8 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
24-8 AWG
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
Technical Data Width
45.1 mm
