Wieland WKF2,5/MD Feed-Through Terminal Block
Wieland WKF2,5/MD Feed-Through Terminal Block
SKU:DIN-b987be
Secure electrical connections with the Wieland WKF2,5/MD Feed-Through Terminal Block. DIN Rail Terminal Block with 2.5 mm² cross-section, 24 A rated current, and 800 V maximum voltage.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Wieland WKF2,5/MD Feed-Through Terminal Block
$15.99
Quantity: 1
Claim Your Seller Account
Wieland WKF2,5/MD Feed-Through Terminal Block
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

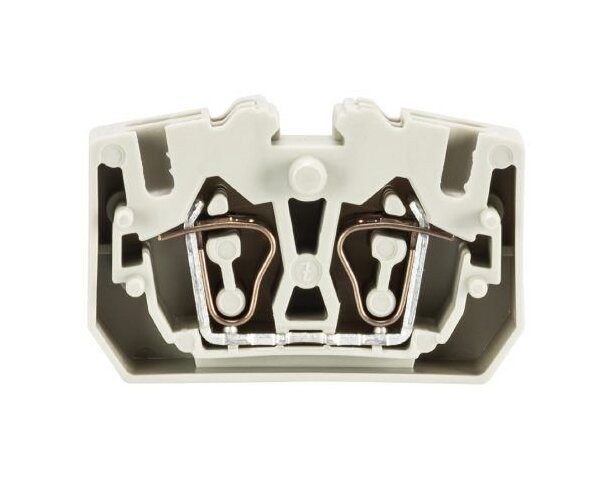

The Wieland WKF2,5/MD Feed-Through Terminal Block offers efficient and reliable electrical connections with a tension spring connection for secure mounting. This DIN Rail Terminal Block features a 2.5 mm² nominal cross-section, rated current of 24 A, and a maximum rated voltage of 800 V. Its gray color, compact size, and PA66 insulating housing ensure durability. With UL94 V2 flame-retardant insulation and compliance with RoHS and REACH-SVHC standards, this terminal block guarantees safety and environmental responsibility in electrical installations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Spring Clamp Connection
Connection Data Maximum Fine Stranded Cross Section
2.5 mm²
Connection Data Maximum Solid Cross Section
4 mm²
Connection Data Minimum Fine Stranded Cross Section
0.13 mm²
Connection Data Minimum Solid Cross Section
0.13 mm²
Connection Data Wire Strip Length
11 mm
General Brands
Wieland
General Color
Gray
General Explosion Tested Version Ex E
No
General Inflammability Class Of Insulation Material According Wi
V2
General Insulating Housing
PA66
General Model
WKF2,5/MD
General Mounting Method
Direct Mounting
General Nominal Cross Section
2.5 mm²
General Number Of Clamp Positions Per Level
4
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
10 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
36 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Current
24 A
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
24-12 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-12 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
25 A
Technical Data Ulcsa Factory Wiring Current
20 A
Technical Data Ulcsa Field Wiring Current
20 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
