Wieland WKFN 10 Earth Terminal Block
Wieland WKFN 10 Earth Terminal Block
SKU:DIN-3016c8
High-quality Wieland WKFN 10 Earth Terminal Block for industrial applications, 10mm² cross-section, V0 inflammability class, RoHS compliant.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Wieland WKFN 10 Earth Terminal Block
$39.99
Quantity: 1
Claim Your Seller Account
Wieland WKFN 10 Earth Terminal Block
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

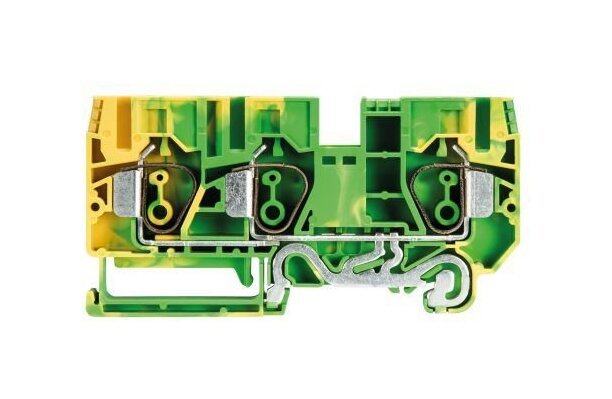

The Wieland WKFN 10 D1/2/SL/35 Earth Terminal Block is a high-quality grounding solution designed for industrial applications. Featuring tension spring connections for secure mounting on TS 35 rails, this terminal block offers a nominal cross-section of 10 mm² and a width of 10mm. Its green-yellow color ensures easy identification in electrical installations. With a V0 inflammability class and UL94 insulation material, this block guarantees safety and reliability. It also meets RoHS and REACH-SVHC conformity standards.
Product Specifications
Classification Eclass 81 Classification
27141141
Classification Etim 30 Classification
EC000901
Classification Etim 40 Classification
EC000901
Classification Etim 50 Classification
EC000901
Classification Etim 60 Classification
EC000901
Classification Etim 70 Classification
EC000901
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Spring Clamp Connection
Connection Data Maximum Fine Stranded Cross Section
10 mm²
Connection Data Maximum Solid Cross Section
10 mm²
Connection Data Maximum Stranded Cross Section
16 mm²
Connection Data Minimum Fine Stranded Cross Section
0.2 mm²
Connection Data Minimum Solid Cross Section
1.5 mm²
Connection Data Minimum Stranded Cross Section
16 mm²
Connection Data Wire Strip Length
15 mm
General Brands
Wieland
General Color
Green/Yellow
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKFN 10 D1/2/SL/35
General Mounting Method
DIN Rail (Top Hat Rail)
General Mounting Size
35 x 7.5 mm
General Nominal Cross Section
10 mm²
General Number Of Clamp Positions Per Level
3
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
10 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
98 mm
Technical Data Pollution Degree
3
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
16-6 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
16-6 AWG
