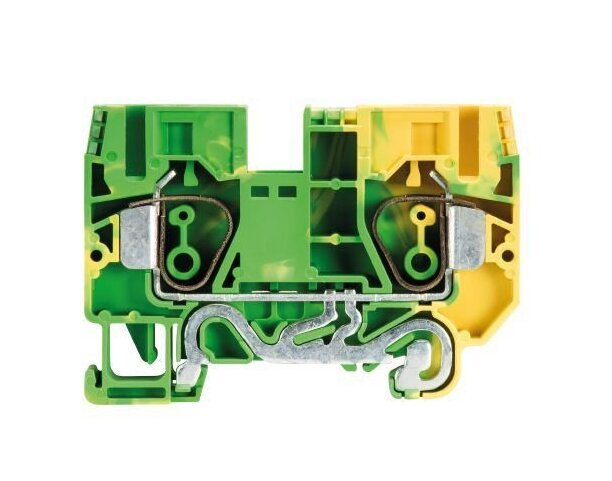

Wieland WKFN 10 SL/35 Earth Terminal Block
Wieland WKFN 10 SL/35 Earth Terminal Block
SKU:DIN-d8eb8f
Efficiently ground electrical connections with the Wieland WKFN 10 SL/35 Earth Terminal Block. Easy to mount on TS 35 rails, with 10 mm² cross-section and UL94 V0 rated insulation for safety.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland WKFN 10 SL/35 Earth Terminal Block
$29.99
Quantity: 1
Claim Your Seller Account
Wieland WKFN 10 SL/35 Earth Terminal Block
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland WKFN 10 SL/35 Earth Terminal Block is a high-quality grounding solution featuring tension spring connections for easy mounting on TS 35 DIN rails. With a nominal cross-section of 10 mm² and a width of 10 mm, this green-yellow terminal block is designed for efficiency and safety. It offers one level with two clamp positions per level and is crafted with PA666 insulating housing. UL94 V0 rated for exceptional fire resistance, this terminal block is explosion-tested ("Ex. e") and suitable for electrical installations. With a rated impulse voltage of 8 kV and reliable spring clamp connections, this terminal block ensures secure and robust connections for various applications.
Product Specifications
Classification Eclass 81 Classification
27141141
Classification Etim 30 Classification
EC000901
Classification Etim 40 Classification
EC000901
Classification Etim 50 Classification
EC000901
Classification Etim 60 Classification
EC000901
Classification Etim 70 Classification
EC000901
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Spring Clamp Connection
Connection Data Maximum Fine Stranded Cross Section
10 mm²
Connection Data Maximum Solid Cross Section
10 mm²
Connection Data Maximum Stranded Cross Section
16 mm²
Connection Data Minimum Fine Stranded Cross Section
0.2 mm²
Connection Data Minimum Solid Cross Section
1.5 mm²
Connection Data Minimum Stranded Cross Section
16 mm²
Connection Data Wire Strip Length
15 mm
General Brands
Wieland
General Color
Green/Yellow
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKFN 10 SL/35
General Mounting Method
DIN Rail (Top Hat Rail)
General Mounting Size
35 x 7.5 mm
General Nominal Cross Section
10 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
10 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
72.5 mm
Technical Data Pollution Degree
3
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
16-6 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
16-6 AWG
