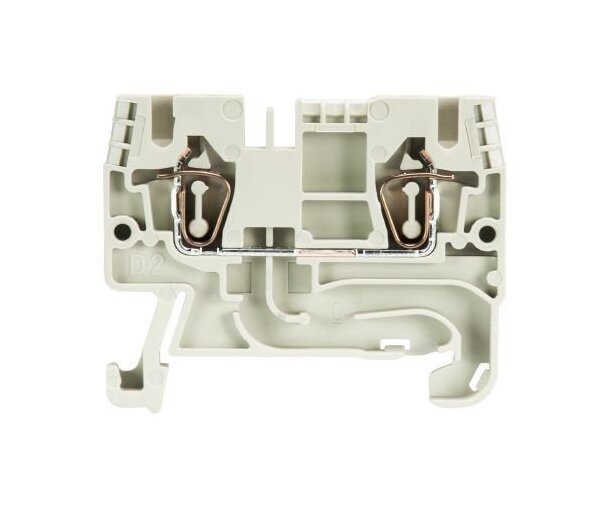

Wieland WKFN 2.5/35 Feed-Through Terminal Block with Spring Clamp Connection
Wieland WKFN 2.5/35 Feed-Through Terminal Block with Spring Clamp Connection
SKU:DIN-30bde7
Wieland WKFN 2.5/35 Terminal Block: Secure spring clamp connection, UL/CSA certified, RoHS compliant.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Wieland WKFN 2.5/35 Feed-Through Terminal Block with Spring Clamp Connection
$12.99
Quantity: 1
Claim Your Seller Account
Wieland WKFN 2.5/35 Feed-Through Terminal Block with Spring Clamp Connection
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland WKFN 2.5/35 Feed-Through Terminal Block is an essential component for electrical installations, featuring a tension spring connection for secure mounting on TS35 DIN rails. With a nominal cross-section of 2.5 mm² and a rated current of 24 A, this terminal block ensures reliable electrical connections. It meets UL94 V0 inflammability standards, with UL and CSA certifications for 600V applications. The spring clamp connections accommodate solid and fine-stranded wires, making installations efficient and secure. Compliant with RoHS and REACH-SVHC regulations, this terminal block offers exceptional quality and safety for industrial and institutional projects.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Spring Clamp Connection
Connection Data Maximum Fine Stranded Cross Section
2.5 mm²
Connection Data Maximum Solid Cross Section
4 mm²
Connection Data Minimum Fine Stranded Cross Section
0.13 mm²
Connection Data Minimum Solid Cross Section
0.13 mm²
Connection Data Wire Strip Length
11 mm
General Brands
Wieland
General Color
Gray
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKFN 2,5 /35
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
2.5 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
5 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
47.1 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Current
24 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
24-12 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-12 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
24 A
Technical Data Ulcsa Factory Wiring Current
20 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
Technical Data Width
5 mm
