Wieland WKFN 2.5 E/35 Multi-Tier Terminal
Wieland WKFN 2.5 E/35 Multi-Tier Terminal
SKU:DIN-0020d0
Secure your electrical connections with the Wieland WKFN 2.5 E/35 Multi-Tier Terminal – ideal for DIN rail mounting, featuring a 2.5 mm² cross-section and 24 A current rating.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland WKFN 2.5 E/35 Multi-Tier Terminal
$29.99
Quantity: 1
Claim Your Seller Account
Wieland WKFN 2.5 E/35 Multi-Tier Terminal
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

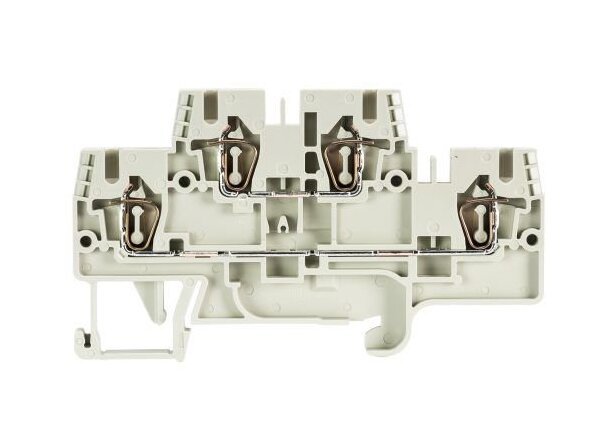

The Wieland WKFN 2.5 E/35 Multi-Tier Terminal is a reliable duo feed-through terminal suitable for DIN rail mounting on TS 35. Designed with a nominal cross-section of 2.5 mm² and a width of 5 mm, this terminal block in gray color features tension spring connections for secure installations. With a rated current of 24 A, maximum rated voltage of 500 V, and explosion-tested design, it ensures safe and efficient electrical connections. This product is compliant with RoHS and REACH-SVHC standards, meeting key industry requirements for environmental responsibility.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Spring Clamp Connection
Connection Data Maximum Fine Stranded Connection Cross Section
2.5 mm²
Connection Data Maximum Solid Cross Section
4 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.13 mm²
Connection Data Minimum Solid Cross Section
0.13 mm²
Connection Data Wire Strip Length
11 mm
General Color
Gray
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
2.5 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
2
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
5 mm
Note Remark To Maximum Rated Voltage
UL+ CSA 300V/600V
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant

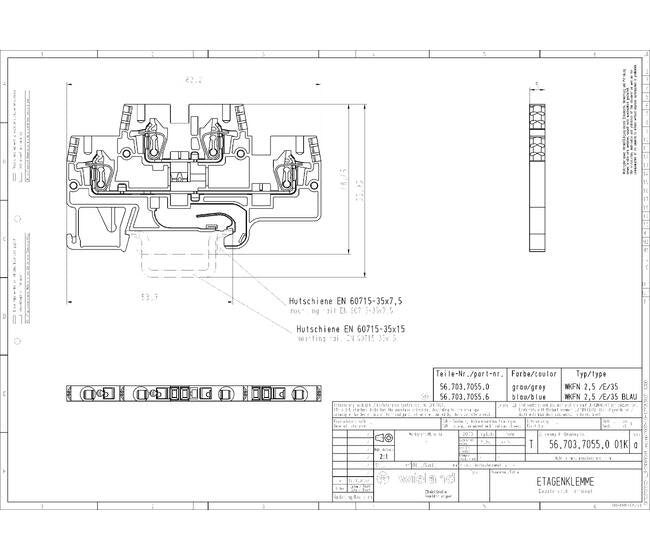

Specifications Mounting Size
35 x 7.5 mm
Technical Data Closing Plate Required
Yes
Technical Data Length
82.2 mm
Technical Data Maximum Rated Voltage
500 V
Technical Data Pollution Degree
3
Technical Data Rated Current
24 A
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
22-12 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-12 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
24 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
