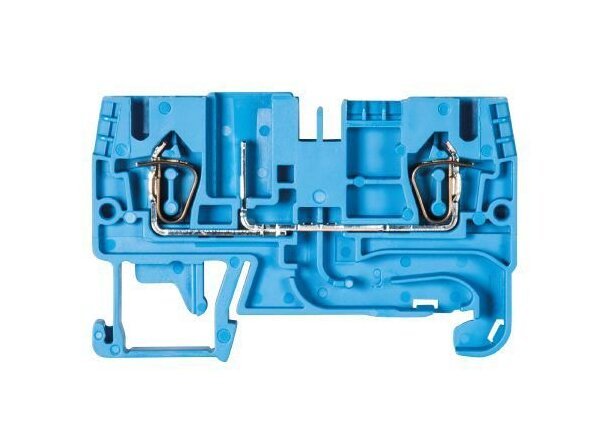

• Wieland WKFN 2.5 Feed-Through Terminal Block - Image 2

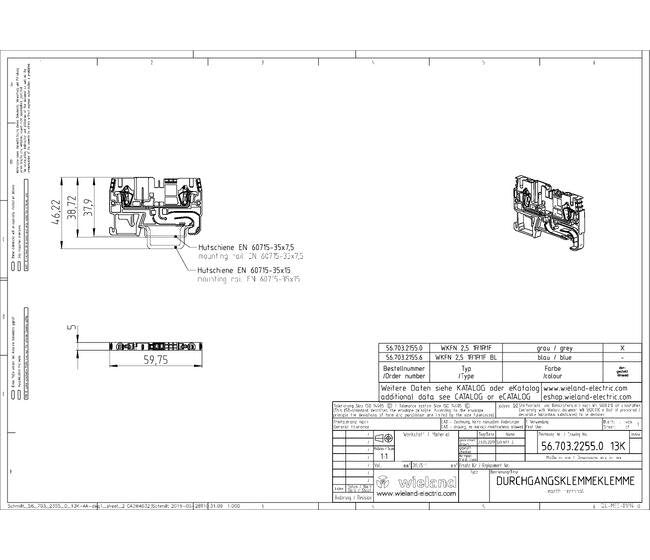

  • Wieland WKFN 2.5 Feed-Through Terminal Block - Image 3
1 2
Wieland Electric Inc. →

Wieland WKFN 2.5 Feed-Through Terminal Block

Wieland WKFN 2.5 Feed-Through Terminal Block

DIN-995242

Reliable Wieland WKFN 2.5 Feed-Through Terminal Block for secure electrical connections on TS35 rails.

$28.99
$28.99
Sale

Initiate Order

Wieland WKFN 2.5 Feed-Through Terminal Block

Wieland WKFN 2.5 Feed-Through Terminal Block

$28.99

Quantity: 1

Claim Your Seller Account

Wieland WKFN 2.5 Feed-Through Terminal Block

Wieland WKFN 2.5 Feed-Through Terminal Block

$28.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Wieland WKFN 2.5 Feed-Through Terminal Block is a premium DIN rail terminal block featuring a tension spring connection for secure mounting on TS35. With a nominal cross-section of 2.5 mm² and rated current of 32 A, this blue terminal block offers reliable electrical connections. Its UL94 V0-rated insulating housing and flame-retardant design ensure safety. Suitable for various wire types, it meets RoHS and REACH-SVHC conformity standards.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Plug-In Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
4 mm²
Connection Data Maximum Stranded Cross Section
4 mm²
Connection Data Minimum Fine Stranded Cross Section
0.13 mm²
Connection Data Minimum Solid Cross Section
0.2 mm²
Connection Data Minimum Stranded Cross Section
0.13 mm²
Connection Data Wire Strip Length
11 mm
General Brands
Wieland
General Color
Blue
General Explosion Tested Version Ex E
No
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKFN 2,5 F/P/F
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
2.5 mm²
General Number Of Clamp Positions Per Level
3
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
5 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Height
39 mm
Technical Data Length
60 mm
Technical Data Maximum Rated Voltage
500 V
Technical Data Pollution Degree
3
Technical Data Rated Current
32 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Voltage Canadian Standards Association Csa
500 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
500 V
Technical Data Width
5 mm
