Wieland WKFN 2 Blue Duo-Modular Terminal Block
Wieland WKFN 2 Blue Duo-Modular Terminal Block
SKU:DIN-ad6fcf
Securely connect wires with the Wieland WKFN 2 Blue Terminal Block featuring 4 clamp positions per level, ideal for industrial use.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Wieland WKFN 2 Blue Duo-Modular Terminal Block
$14.99
Quantity: 1
Claim Your Seller Account
Wieland WKFN 2 Blue Duo-Modular Terminal Block
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

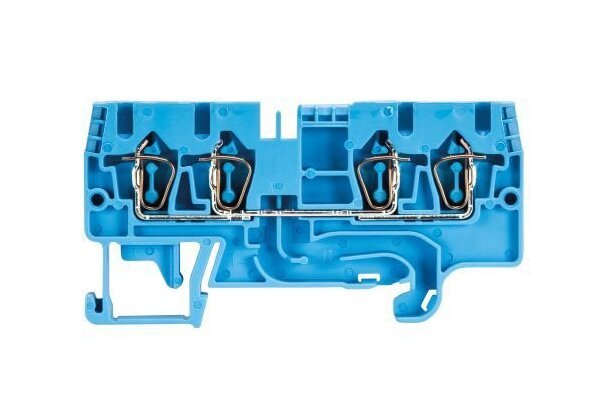

The Wieland WKFN 2 Duo-Modular Terminal Block in blue color offers 4 clamp positions per level with a tension spring connection for secure mounting on TS 35. With a nominal cross-section of 2.5 mm² and a rated current of 24 A, this terminal block ensures reliable electrical connectivity. Compliant with RoHS and REACH standards, it also meets ATEX, CSA, UR, and USA-EX certifications, making it suitable for various industrial applications.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Spring Clamp Connection
Connection Data Maximum Fine Stranded Cross Section
2.5 mm²
Connection Data Maximum Solid Cross Section
4 mm²
Connection Data Minimum Fine Stranded Cross Section
0.13 mm²
Connection Data Minimum Solid Cross Section
0.13 mm²
Connection Data Wire Strip Length
11 mm
General Brands
Wieland
General Color
Blue
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKFN 2
General Mounting Method
DIN Rail (Top Hat Rail)
General Mounting Size
35 x 7.5 mm
General Nominal Cross Section
2.5 mm²
General Number Of Clamp Positions Per Level
4
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
5 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Specifications Certificationapproval
ATEX | Canadian (CAN-EX) | Canadian Standards Association (CSA) | UR | USA-EX
Technical Data Closing Plate Required
Yes
Technical Data Length
72.4 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Current
24 A
Technical Data Rated Impulse Voltage
8 V
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
24-12 AWG
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
Technical Data Width
5 mm
