Wieland WKFN 2 Duo-Ground Terminal Block with 4 Clamp Positions
Wieland WKFN 2 Duo-Ground Terminal Block with 4 Clamp Positions
Wieland WKFN 2 Duo-Ground Terminal Block with 4 Clamp Positions, DIN rail mountable, 2.5 mm² cross-section, V0 inflammability class, 800 V max rated voltage
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland WKFN 2 Duo-Ground Terminal Block with 4 Clamp Positions
$29.99
Quantity: 1
Claim Your Seller Account
Wieland WKFN 2 Duo-Ground Terminal Block with 4 Clamp Positions
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

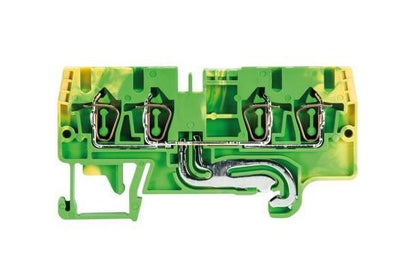

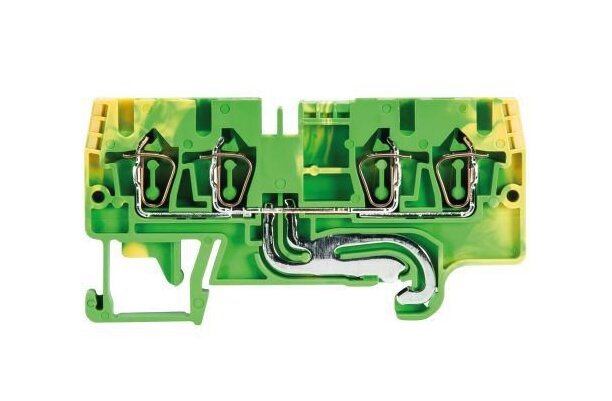

The Wieland WKFN 2 Duo-Ground Terminal Block is a reliable solution for electrical installations, featuring 4 clamp positions per level for secure connections. With a nominal cross-section of 2.5 mm² and a maximum rated voltage of 800 V, this terminal block ensures efficient power distribution. It is designed with a tension spring connection and PA666 insulating housing, compliant with V0 inflammability class. The terminal block is DIN rail mountable (35 x 7.5 mm) and explosion-tested, meeting rigorous industry standards for safety and performance.
Product Specifications
Classification Eclass 81 Classification
27141141
Classification Etim 30 Classification
EC000901
Classification Etim 40 Classification
EC000901
Classification Etim 50 Classification
EC000901
Classification Etim 60 Classification
EC000901
Classification Etim 70 Classification
EC000901
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Spring Clamp Connection
Connection Data Maximum Fine Stranded Cross Section
2.5 mm²
Connection Data Maximum Solid Cross Section
4 mm²
Connection Data Minimum Fine Stranded Cross Section
0.13 mm²
Connection Data Minimum Solid Cross Section
0.13 mm²
Connection Data Wire Strip Length
11 mm
General Brands
Wieland
General Color
Green | Yellow
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKFN 2
General Mounting Method
DIN Rail (Top Hat Rail)
General Mounting Size
35 x 7.5 mm
General Nominal Cross Section
2.5 mm²
General Number Of Clamp Positions Per Level
4
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
5 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
72.4 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
24-12 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-12 AWG
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
