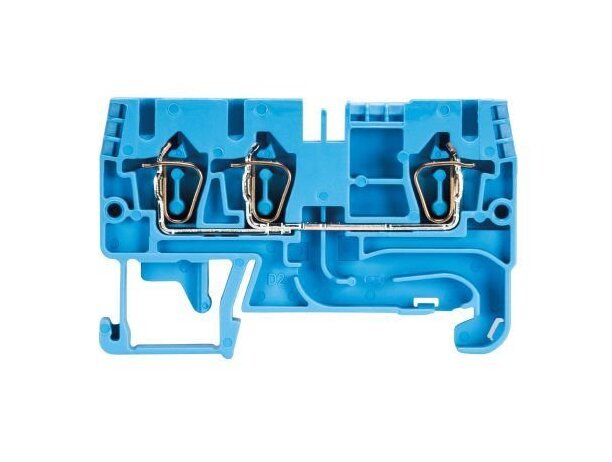

Wieland WKFN 2 Duo-Modular Terminal Block - Blue (3 Clamp Positions)
Wieland WKFN 2 Duo-Modular Terminal Block - Blue (3 Clamp Positions)
SKU:DIN-9fa2a1
High-quality Wieland WKFN 2 Duo-Modular Terminal Block in Blue with 3 clamp positions, ideal for industrial use.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Wieland WKFN 2 Duo-Modular Terminal Block - Blue (3 Clamp Positions)
$45.99
Quantity: 1
Claim Your Seller Account
Wieland WKFN 2 Duo-Modular Terminal Block - Blue (3 Clamp Positions)
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland WKFN 2 Duo-Modular Terminal Block in Blue offers exceptional reliability and efficiency for electrical installations. With a nominal cross section of 2.5 mm², this terminal block features 3 clamp positions per level on a 5mm grid dimension. Designed with PA666 insulating housing and V0 inflammability class, it meets high safety standards. Rated at 24A and 800V, this block is suitable for various industrial applications. Its spring clamp connections, compact size, and compatibility with DIN rails make it a versatile and secure choice for your projects.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Spring Clamp Connection
Connection Data Maximum Fine Stranded Cross Section
2.5 mm²
Connection Data Maximum Solid Cross Section
4 mm²
Connection Data Minimum Fine Stranded Cross Section
0.13 mm²
Connection Data Minimum Solid Cross Section
0.13 mm²
Connection Data Wire Strip Length
11 mm
General Brands
Wieland
General Color
Blue
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKFN 2
General Mounting Method
DIN Rail (Top Hat Rail)
General Mounting Size
35 x 7.5 mm
General Nominal Cross Section
2.5 mm²
General Number Of Clamp Positions Per Level
3
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
5 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Specifications Certificationapproval
ATEX | Canadian (CAN-EX) | Canadian Standards Association (CSA) | UR | USA-EX
Technical Data Closing Plate Required
Yes
Technical Data Length
59.7 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Current
24 A
Technical Data Rated Impulse Voltage
8 V
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
24-12 AWG
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
Technical Data Width
5 mm
