Wieland WKFN 4/35 Feed-Through Terminal Block - Industrial-Grade DIN Rail Connector
Wieland WKFN 4/35 Feed-Through Terminal Block - Industrial-Grade DIN Rail Connector
SKU:DIN-c88b51
Reliable Wieland WKFN 4/35 Feed-Through Terminal Block for industrial electrical connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland WKFN 4/35 Feed-Through Terminal Block - Industrial-Grade DIN Rail Connector
$24.99
Quantity: 1
Claim Your Seller Account
Wieland WKFN 4/35 Feed-Through Terminal Block - Industrial-Grade DIN Rail Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

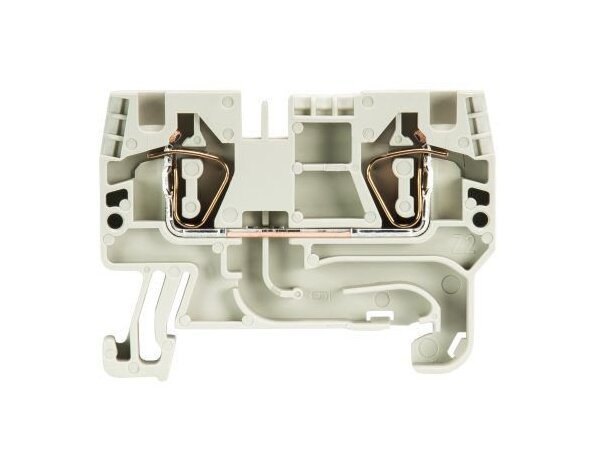

The Wieland WKFN 4/35 Feed-Through Terminal Block is a premium solution for secure electrical connections. With a rated current of 32 A and a maximum voltage of 800 V, this DIN rail terminal block is designed for industrial applications. Its tension spring connection ensures reliable performance, while the V0 inflammability class of insulation material provides safety. Meeting RoHS and REACH-SVHC standards, this terminal block offers both performance and compliance for institutional buyers.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Spring Clamp Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.13 mm²
Connection Data Minimum Solid Cross Section
0.13 mm²
Connection Data Wire Strip Length
11 mm
General Brands
Wieland
General Color
Gray
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKFN 4/35
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
6 mm
Note Note
Remark to rated voltage - UL+CSA 300V/600V
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
51 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Current
32 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
24-10 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
24-10 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
32 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
