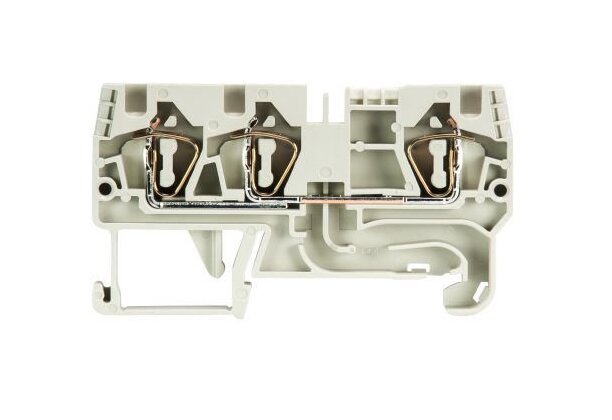

Wieland WKFN 4 D1/2/35 Feed-Through Terminal Block
Wieland WKFN 4 D1/2/35 Feed-Through Terminal Block
SKU:DIN-9c5a7d
High-quality DIN rail terminal block with 4mm² cross section, 32A current, and 800V voltage rating. RoHS and REACH-SVHC compliant.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Wieland WKFN 4 D1/2/35 Feed-Through Terminal Block
$39.99
Quantity: 1
Claim Your Seller Account
Wieland WKFN 4 D1/2/35 Feed-Through Terminal Block
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland WKFN 4 D1/2/35 Feed-Through Terminal Block is a high-quality DIN rail terminal block ideal for electrical installations. With a nominal cross section of 4mm², rated current of 32A, and maximum rated voltage of 800V, this terminal block ensures secure and efficient connections. Featuring a spring clamp connection type and an insulating housing made of flame-retardant PA666 material, this block meets strict safety standards like UL94 V0. Compliant with RoHS and REACH-SVHC regulations, it is environmentally friendly and sustainable.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Spring Clamp Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.13 mm²
Connection Data Minimum Solid Cross Section
0.13 mm²
Connection Data Wire Strip Length
11 mm
General Brands
Wieland
General Color
Gray
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKFN 4 D1/2/35
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
3
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
6 mm
Note Note
Remark to rated voltage - CSA 300V/600V
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Height
37.3 mm
Technical Data Length
66.6 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Current
32 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
24-10 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
24-10 AWG
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
Technical Data Width
6 mm
