Wieland WKFN 4 Multi-Tier Terminal Block
Wieland WKFN 4 Multi-Tier Terminal Block
SKU:DIN-58f170
High-quality Wieland WKFN 4 Multi-Tier Terminal Block with 4mm² cross-section, 2 levels, and DIN rail mounting. Compliant with technical standards.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Wieland WKFN 4 Multi-Tier Terminal Block
$25.99
Quantity: 1
Claim Your Seller Account
Wieland WKFN 4 Multi-Tier Terminal Block
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

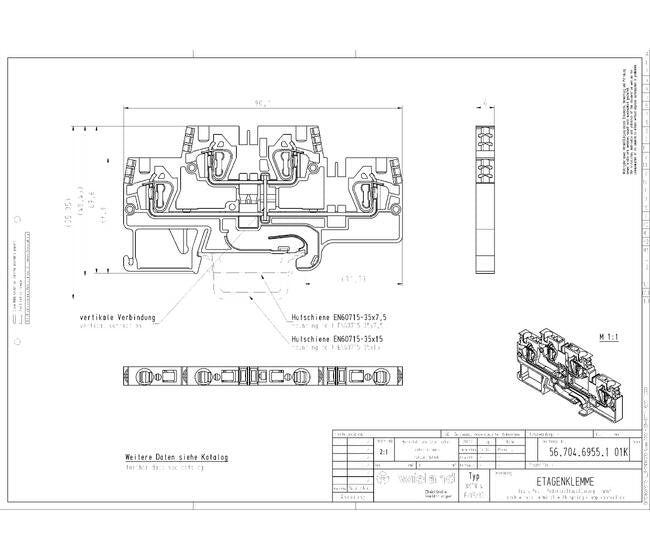

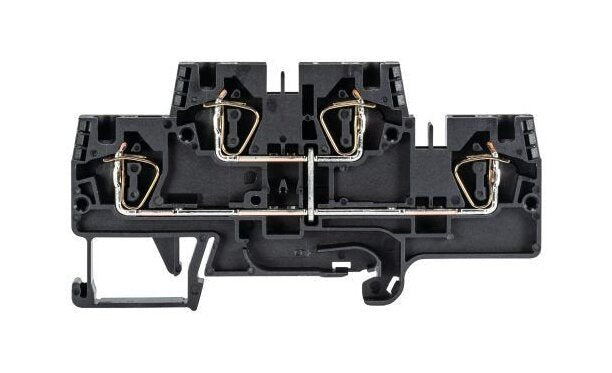

The Wieland WKFN 4 E/VB/35 Multi-Tier Terminal Block is a high-quality duo feed-through terminal with tension spring connection, designed for mounting on TS 35 rails. This terminal block has a nominal cross-section of 4 mm² and a sleek black color. With two levels and two clamp positions per level, it offers reliable connectivity. It meets various technical standards, including a rated current of 32 A, maximum rated voltage of 500 V, and an inflammability class of V0. The terminal block is suitable for electrical installations and features a thermoplastic insulation material for safety.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Spring Clamp Connection
Connection Data Maximum Fine Stranded Connection Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.13 mm²
Connection Data Minimum Solid Cross Section
0.13 mm²
Connection Data Wire Strip Length
11 mm
General Color
Black
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
2
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
6 mm
Note Remark To Maximum Rated Voltage
UL 300V/600V
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Specifications Mounting Size
35 x 7.5 mm
Technical Data Closing Plate Required
Yes
Technical Data Length
90.1 mm
Technical Data Maximum Rated Voltage
500 V
Technical Data Pollution Degree
3
Technical Data Rated Current
32 A
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
22-12 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-12 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
32 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
