Wieland WKFN 4 TKG/35 DIN Rail Fuse Terminal Block
Wieland WKFN 4 TKG/35 DIN Rail Fuse Terminal Block
SKU:DIN-3a4bcf
Wieland WKFN 4 TKG/35: Reliable spring clamp fuse terminal block for TS 35 DIN rails. 4mm² cross-section, V0 insulation, and 500V rated voltage.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland WKFN 4 TKG/35 DIN Rail Fuse Terminal Block
$24.99
Quantity: 1
Claim Your Seller Account
Wieland WKFN 4 TKG/35 DIN Rail Fuse Terminal Block
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

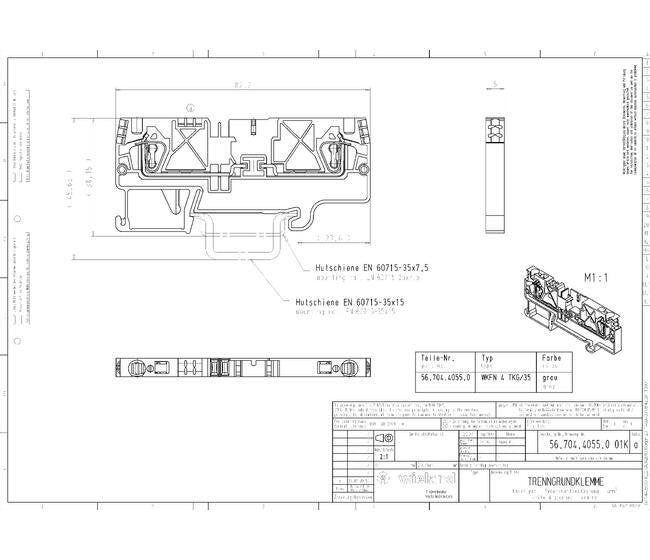

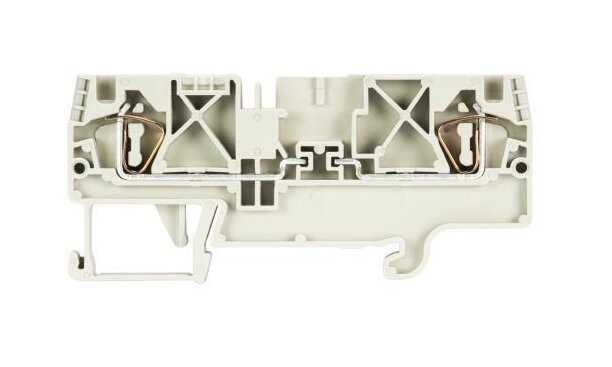

The Wieland WKFN 4 TKG/35 Fuse Terminal Block is a disconnect block featuring tension spring connections, designed for seamless mounting on TS 35 DIN rails. With a nominal cross-section of 4 mm², V0 rated insulation, and a maximum rated voltage of 500 V, this gray terminal block ensures reliable electrical installations. It offers 1 level with 2 clamp positions each, spring clamp connections, and complies with ECLASS 8.1 and ETIM 7.0 classifications.
Product Specifications
Classification Eclass 81 Classification
27141126
Classification Etim 30 Classification
EC000902
Classification Etim 40 Classification
EC000902
Classification Etim 50 Classification
EC000902
Classification Etim 60 Classification
EC000902
Classification Etim 70 Classification
EC000902
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Spring Clamp Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.13 mm²
Connection Data Minimum Solid Cross Section
0.13 mm²
Connection Data Wire Strip Length
11 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKFN 4 TKG/35
General Mounting Method
DIN Rail (Top Hat Rail)
General Mounting Size
35 x 7.5 mm
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
6 mm
Note Integrated Test Socket
No
Note Remark To Rated Current
Note Fuse Insert
Technical Data Closing Plate Required
Yes
Technical Data Length
82.2 mm
Technical Data Maximum Rated Voltage
500 V
Technical Data Pollution Degree
3
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
