Wieland WKFN 6 Earth Terminal Block
Wieland WKFN 6 Earth Terminal Block
SKU:DIN-9b5eb2
Wieland WKFN 6 Earth Terminal Block: Secure, efficient grounding solution with 6mm² cross section, DIN rail mountable, and UL94 V0 compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland WKFN 6 Earth Terminal Block
$24.99
Quantity: 1
Claim Your Seller Account
Wieland WKFN 6 Earth Terminal Block
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

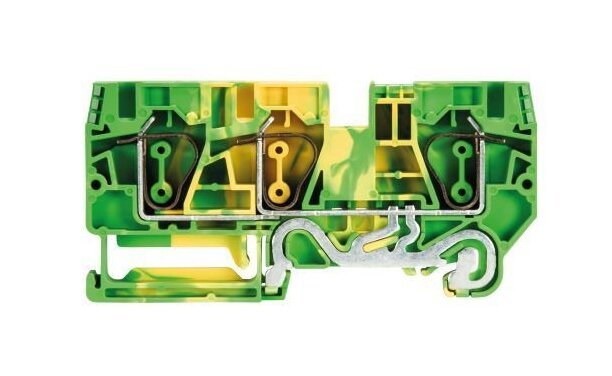

The Wieland WKFN 6 D1/2/SL/35 Earth Terminal Block is a high-performance grounding solution specifically designed for electrical installations. With a nominal cross section of 6 mm² and a reliable tension spring connection, this terminal block ensures secure and efficient grounding. Its green-yellow color allows for easy identification. Meeting UL94 V0 inflammability standards and explosion-tested, this terminal block guarantees safety and reliability in various industrial applications. It is DIN rail mountable and complies with REACH-SVHC regulations.
Product Specifications
Classification Eclass 81 Classification
27141141
Classification Etim 30 Classification
EC000901
Classification Etim 40 Classification
EC000901
Classification Etim 50 Classification
EC000901
Classification Etim 60 Classification
EC000901
Classification Etim 70 Classification
EC000901
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Spring Clamp Connection
Connection Data Maximum Fine Stranded Cross Section
6 mm²
Connection Data Maximum Solid Cross Section
10 mm²
Connection Data Minimum Fine Stranded Cross Section
0.2 mm²
Connection Data Minimum Solid Cross Section
0.2 mm²
Connection Data Wire Strip Length
12 mm
General Brands
Wieland
General Color
Green/Yellow
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKFN 6 D1/2/SL/35
General Mounting Method
DIN Rail (Top Hat Rail)
General Mounting Size
35 x 7.5 mm
General Nominal Cross Section
6 mm²
General Number Of Clamp Positions Per Level
3
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
8 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
89.9 mm
Technical Data Pollution Degree
3
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
24-8 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
24-8 AWG
