Wieland WKFN Earth Terminal Block - 4mm², Green/Yellow
Wieland WKFN Earth Terminal Block - 4mm², Green/Yellow
SKU:DIN-453413
Secure grounding with Wieland WKFN Earth Terminal Block - 4mm², green/yellow color. Ideal for DIN rail installations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland WKFN Earth Terminal Block - 4mm², Green/Yellow
$29.99
Quantity: 1
Claim Your Seller Account
Wieland WKFN Earth Terminal Block - 4mm², Green/Yellow
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

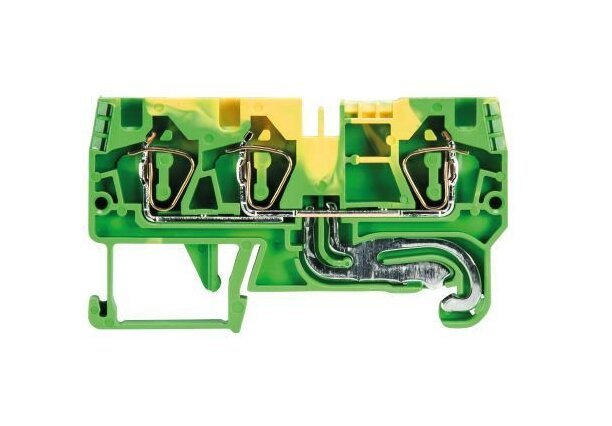

The Wieland WKFN 4 D1/2/SL/35 Earth Terminal Block is designed with a tension spring connection for easy mounting on TS 35 DIN rails. With a nominal cross-section of 4 mm², this terminal block offers secure grounding capabilities. Its green-yellow color-coded design ensures proper identification in electrical installations. Meeting UL94 V0 flammability standards and explosion-tested requirements, this terminal block ensures safety. Suitable for various wire sizes and featuring spring clamp connections, it provides reliable electrical connectivity.
Product Specifications
Classification Eclass 81 Classification
27141141
Classification Etim 30 Classification
EC000901
Classification Etim 40 Classification
EC000901
Classification Etim 50 Classification
EC000901
Classification Etim 60 Classification
EC000901
Classification Etim 70 Classification
EC000901
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Spring Clamp Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.13 mm²
Connection Data Minimum Solid Cross Section
0.13 mm²
Connection Data Wire Strip Length
11 mm
General Brands
Wieland
General Color
Green/Yellow
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKFN 4 D1/2/SL/35
General Mounting Method
DIN Rail (Top Hat Rail)
General Mounting Size
35 x 7.5 mm
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
3
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
6 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
66.6 mm
Technical Data Pollution Degree
3
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
24-10 AWG
