Wieland WKI 10/U/V0 Feed-Through Terminal Block
Wieland WKI 10/U/V0 Feed-Through Terminal Block
SKU:DIN-bff9ba
Wieland WKI 10/U/V0 Terminal Block, 10 mm² nominal cross-section, 400V max rated voltage, DIN rail mount, screw connection, V0 flame-retardant,RoHS & REACH-SVHC compliant.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Wieland WKI 10/U/V0 Feed-Through Terminal Block
$14.99
Quantity: 1
Claim Your Seller Account
Wieland WKI 10/U/V0 Feed-Through Terminal Block
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

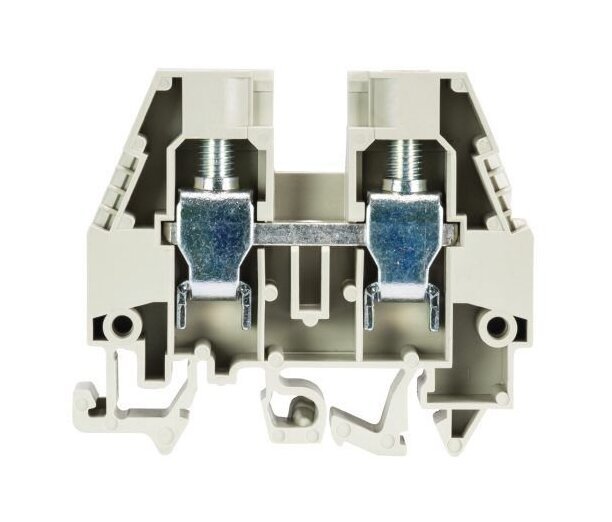

The Wieland WKI 10/U/V0 Feed-Through Terminal Block is a reliable solution for electrical installations, featuring a nominal cross-section of 10 mm² and a maximum rated voltage of 400V. With a screw connection and PA666 insulating housing, this gray terminal block is designed for secure and efficient mounting on TS 35/TS 32 DIN rails. Its flame-retardant properties (V0 according to UL94) ensure safety, while meeting RoHS and REACH-SVHC compliance standards.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
10 mm²
Connection Data Maximum Solid Cross Section
10 mm²
Connection Data Maximum Stranded Cross Section
16 mm²
Connection Data Minimum Fine Stranded Cross Section
1 mm²
Connection Data Minimum Solid Cross Section
1.5 mm²
Connection Data Minimum Stranded Cross Section
16 mm²
Connection Data Wire Strip Length
18 mm
General Brands
Wieland
General Color
Gray
General Explosion Tested Version Ex E
No
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKI 10/U/V0
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
10 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
10 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
58 mm
Technical Data Maximum Rated Voltage
400 V
Technical Data Pollution Degree
3
Technical Data Rated Current
57 A
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
16-6 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
16-6 AWG
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
