Wieland WKI 4 D-D-SL/V0 Screw Installation Terminal Block for TS 35 DIN Rail
Wieland WKI 4 D-D-SL/V0 Screw Installation Terminal Block for TS 35 DIN Rail
SKU:DIN-fae127
Wieland WKI 4 D-D-SL/V0 Terminal Block - Nominal 4mm², 400V, Screw Connection, DIN Rail Mount
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland WKI 4 D-D-SL/V0 Screw Installation Terminal Block for TS 35 DIN Rail
$24.99
Quantity: 1
Claim Your Seller Account
Wieland WKI 4 D-D-SL/V0 Screw Installation Terminal Block for TS 35 DIN Rail
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

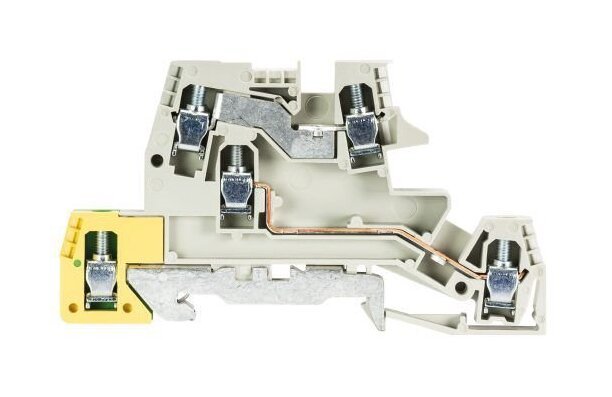

The Wieland WKI 4 D-D-SL/V0 Installation Terminal Block is a reliable solution for electrical installations. With a nominal cross-section of 4 mm² and a maximum rated voltage of 400 V, this terminal block offers three levels with two clamp positions per level. Its V0 inflammability class insulation and thermoplastic material ensure safety and durability. Designed for ease of installation on a DIN rail, this terminal block is suitable for various applications in industrial settings. Meeting UL and CSA standards, it provides a rated current of 26 A and a rated impulse voltage of 6 kV, making it a dependable choice for electrical connections.
Product Specifications
Classification Eclass 81 Classification
27141125
Classification Etim 30 Classification
EC001329
Classification Etim 40 Classification
EC001329
Classification Etim 50 Classification
EC001329
Classification Etim 60 Classification
EC001329
Classification Etim 70 Classification
EC001329
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Wire Strip Length
7 mm
General Basic Color
Gray
General Brands
Wieland
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKI 4 D-D-SL/V0
General Mounting Method
DIN Rail (Top Hat Rail)
General Mounting Size
35 x 7.5 mm
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
3
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
6 mm
Note N Function
No
Technical Data Closing Plate Required
Yes
Technical Data Length
90 mm
Technical Data Maximum Rated Voltage
400 V
Technical Data Pollution Degree
3
Technical Data Rated Current
26 A
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
22-10 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-10 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
25 A
Technical Data Ulcsa Factory Wiring Current
24 A
Technical Data Ulcsa Field Wiring Current
24 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
