Wieland WKI 4 N-D-SL/V0 DIN Rail Terminal Block
Wieland WKI 4 N-D-SL/V0 DIN Rail Terminal Block
SKU:DIN-67a2e1
Reliable Wieland DIN Rail Terminal Block for secure electrical installations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland WKI 4 N-D-SL/V0 DIN Rail Terminal Block
$29.99
Quantity: 1
Claim Your Seller Account
Wieland WKI 4 N-D-SL/V0 DIN Rail Terminal Block
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

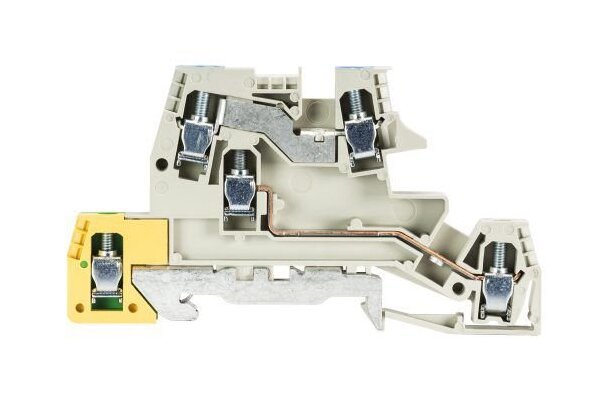

The Wieland WKI 4 N-D-SL/V0 Installation Terminal Block is a high-quality solution designed for electrical installations. With a rated current of 26 A and a maximum rated voltage of 400 V, this terminal block ensures reliable performance. It features a screw connection, DIN rail mounting, and meets V0 inflammability standards. The compact design, with three levels and two clamp positions per level, offers efficient space utilization. With a robust PA666 insulating housing and compliance with UL94 standards, this terminal block is ideal for industrial and commercial applications.
Product Specifications
Classification Eclass 81 Classification
27141125
Classification Etim 30 Classification
EC001329
Classification Etim 40 Classification
EC001329
Classification Etim 50 Classification
EC001329
Classification Etim 60 Classification
EC001329
Classification Etim 70 Classification
EC001329
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Wire Strip Length
7 mm
General Basic Color
Gray
General Brands
Wieland
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKI 4 N-D-SL/V0
General Mounting Method
DIN Rail (Top Hat Rail)
General Mounting Size
35 x 7.5 mm
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
3
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
6 mm
Note N Function
Yes
Technical Data Closing Plate Required
Yes
Technical Data Length
90 mm
Technical Data Maximum Rated Voltage
400 V
Technical Data Pollution Degree
3
Technical Data Rated Current
26 A
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
22-10 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-10 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
25 A
Technical Data Ulcsa Factory Wiring Current
24 A
Technical Data Ulcsa Field Wiring Current
24 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
