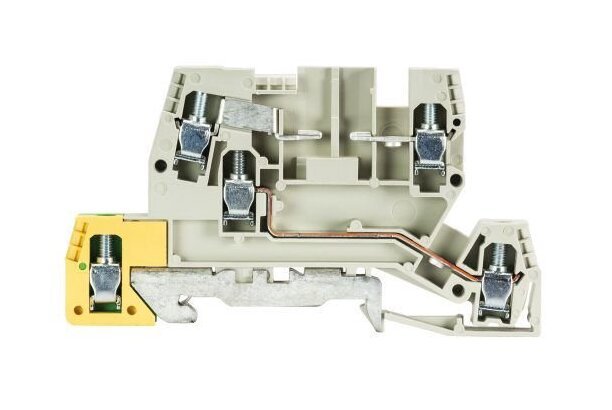

Wieland WKI 4 TKG-D-SL/V0 DIN Rail Terminal Block
Wieland WKI 4 TKG-D-SL/V0 DIN Rail Terminal Block
SKU:DIN-d83abe
High-quality DIN rail terminal block with 4mm² cross section, secure screw connections, and V0 inflammability class for enhanced safety.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland WKI 4 TKG-D-SL/V0 DIN Rail Terminal Block
$24.99
Quantity: 1
Claim Your Seller Account
Wieland WKI 4 TKG-D-SL/V0 DIN Rail Terminal Block
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland WKI 4 TKG-D-SL/V0 Installation Terminal Block is a high-quality solution designed for electrical installations. With a nominal cross section of 4mm² and a maximum rated voltage of 400V, this terminal block offers a reliable connection for various applications. Its screw connections ensure secure mounting on TS 35 DIN rails, providing stability and ease of installation. Meeting stringent UL and CSA standards, this terminal block is rated for a current of up to 26A and features a V0 inflammability class for enhanced safety. The thermoplastic insulation material and 6kV rated impulse voltage make it suitable for industrial and institutional environments where durability and performance are paramount.
Product Specifications
Classification Eclass 81 Classification
27141125
Classification Etim 30 Classification
EC001329
Classification Etim 40 Classification
EC001329
Classification Etim 50 Classification
EC001329
Classification Etim 60 Classification
EC001329
Classification Etim 70 Classification
EC001329
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Wire Strip Length
7 mm
General Basic Color
Gray
General Brands
Wieland
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKI 4 TKG-D-SL/V0
General Mounting Method
DIN Rail (Top Hat Rail)
General Mounting Size
35 x 7.5 mm
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
3
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
6 mm
Note N Function
No
Note Remark To Rated Current
Note Fuse Insert
Technical Data Closing Plate Required
Yes
Technical Data Length
90 mm
Technical Data Maximum Rated Voltage
400 V
Technical Data Pollution Degree
3
Technical Data Rated Current
26 A
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
22-10 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-10 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
6.3 A
Technical Data Ulcsa Factory Wiring Current
12 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
