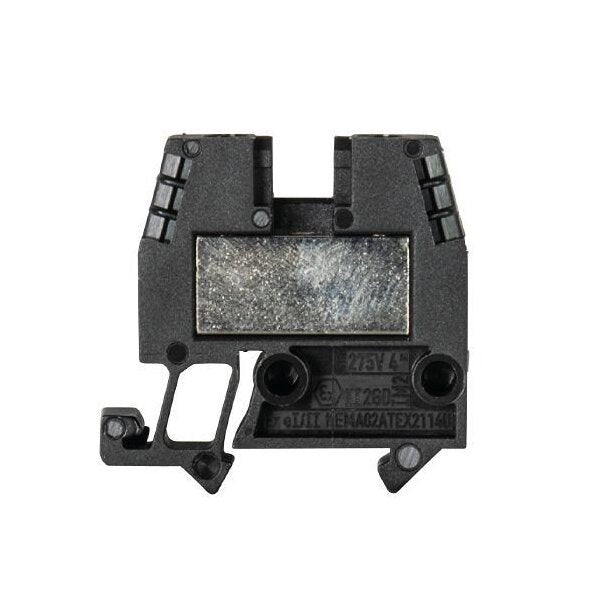

Wieland WKM 4/15 SCHWARZ DIN Rail Feed-Through Terminal Block
Wieland WKM 4/15 SCHWARZ DIN Rail Feed-Through Terminal Block
SKU:DIN-568047
High-quality Wieland terminal block with 4mm² cross section, UL94 V0 insulation, and RoHS compliance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland WKM 4/15 SCHWARZ DIN Rail Feed-Through Terminal Block
$24.99
Quantity: 1
Claim Your Seller Account
Wieland WKM 4/15 SCHWARZ DIN Rail Feed-Through Terminal Block
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland WKM 4/15 SCHWARZ Feed-Through Terminal Block is a premium solution for efficient electrical installations. Featuring a 4 mm² Nominal Cross Section and a maximum rated voltage of 500 V, this black terminal block is built for reliability and safety. With UL94 V0-rated insulation material, this terminal block ensures high-performance under demanding conditions. The screw connections and DIN Rail mounting method make installation hassle-free. Compliant with RoHS standards and featuring lead-free construction, this terminal block is environmentally friendly and ideal for diverse applications.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Wire Strip Length
9 mm
General Brands
Wieland
General Color
Black
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKM 4/15 SCHWARZ
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
6 mm
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Closing Plate Required
Yes
Technical Data Length
32 mm
Technical Data Maximum Rated Voltage
500 V
Technical Data Pollution Degree
3
Technical Data Rated Current
28 A
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
20-10 AWG
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
