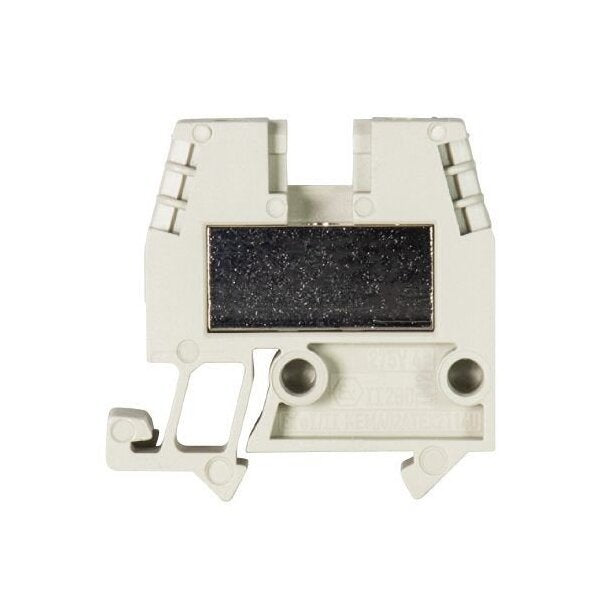

Wieland WKM 4/15/V0 Screw Feed-Through Terminal Block
Wieland WKM 4/15/V0 Screw Feed-Through Terminal Block
SKU:DIN-c05cc0
Efficient Wieland WKM 4/15/V0 terminal block for secure electrical connections on DIN rails. Compliant with RoHS standards.
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
Wieland WKM 4/15/V0 Screw Feed-Through Terminal Block
$19.99
Quantity: 1
Claim Your Seller Account
Wieland WKM 4/15/V0 Screw Feed-Through Terminal Block
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland WKM 4/15/V0 Feed-Through Terminal Block is a reliable electrical connection solution designed for DIN rail mounting on TS 15. With a nominal cross-section of 4mm², rated current of 28A, and maximum rated voltage of 500V, this terminal block provides secure connections. Its V0 inflammability class and explosion-tested version ensure safety. The terminal block features screw connections, insulating housing made of PA666, and complies with RoHS standards. Suitable for industrial and institutional applications, this terminal block meets stringent quality and safety requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Wire Strip Length
9 mm
General Brands
Wieland
General Color
Gray
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKM 4/15/V0
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
6 mm
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Closing Plate Required
Yes
Technical Data Length
32 mm
Technical Data Maximum Rated Voltage
500 V
Technical Data Pollution Degree
3
Technical Data Rated Current
28 A
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
20-10 AWG
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
