Wieland WKM 4 Earth Terminal Block
Wieland WKM 4 Earth Terminal Block
SKU:DIN-178f2a
High-quality Wieland WKM 4 Earth Terminal Block with 4mm² cross section and DIN Rail mounting for secure grounding in electrical installations.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland WKM 4 Earth Terminal Block
$24.99
Quantity: 1
Claim Your Seller Account
Wieland WKM 4 Earth Terminal Block
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

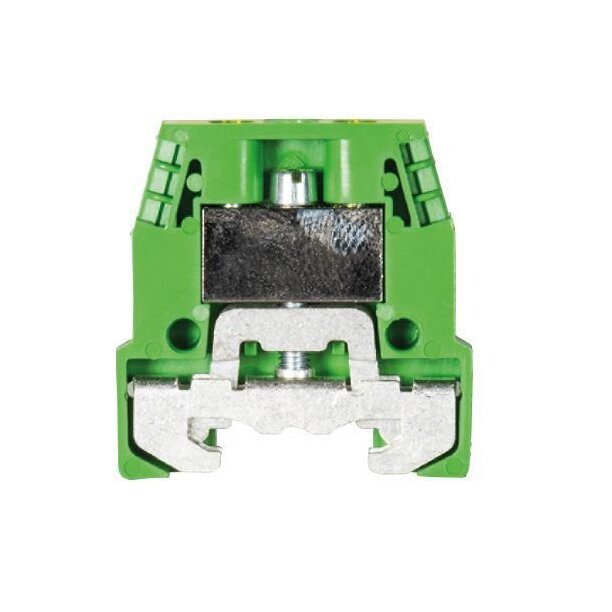

The Wieland WKM 4 SL/15/V0 Earth Terminal Block is a high-quality grounding solution designed for electrical installations. Featuring a nominal cross section of 4 mm² and a vibrant green-yellow color for easy identification, this terminal block is built with precision and reliability in mind. With its DIN Rail mounting method and compact dimensions (6mm width), it provides secure connections, meeting the highest industry standards for safety and performance. The Wieland WKM 4 Earth Terminal Block is ideal for both consumer and institutional buyers seeking robust, compliant, and efficient electrical solutions.
Product Specifications
Classification Eclass 81 Classification
27141141
Classification Etim 30 Classification
EC000901
Classification Etim 40 Classification
EC000901
Classification Etim 50 Classification
EC000901
Classification Etim 60 Classification
EC000901
Classification Etim 70 Classification
EC000901
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Torque Conductor Mounting
0.5 N·m
Connection Data Torque Rail Mounting
0.5 N·m
Connection Data Wire Strip Length
9 mm
General Brands
Wieland
General Color
Green/Yellow
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKM 4 SL/15/V0
General Mounting Method
DIN Rail (Top Hat Rail)
General Mounting Size
15 mm
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
6 mm
Note Remark To Maximum Rated Voltage
No declaration for CSA/VDE
Note Remark To Rated Current
No declaration for CSA/VDE
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Closing Plate Required
Yes
Technical Data Length
31.6 mm
Technical Data Pollution Degree
3
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
