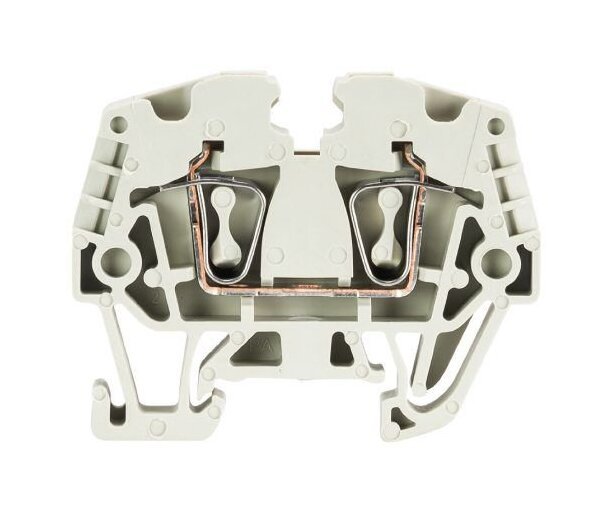

Wieland WKMF 2,5/15 Feed-Through Terminal Block
Wieland WKMF 2,5/15 Feed-Through Terminal Block
SKU:DIN-61dbbe
Reliable Wieland WKMF 2,5/15 Feed-Through Terminal Block with tension spring connections for secure DIN rail mounting. Meets RoHS and REACH-SVHC standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland WKMF 2,5/15 Feed-Through Terminal Block
$29.99
Quantity: 1
Claim Your Seller Account
Wieland WKMF 2,5/15 Feed-Through Terminal Block
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland WKMF 2,5/15 Feed-Through Terminal Block is a high-quality DIN rail terminal block designed for reliable electrical installations. Featuring tension spring connections, this terminal block offers a secure and efficient solution for various applications. With a nominal cross-section of 2.5mm², rated current of 24A, and maximum rated voltage of 500V, this terminal block ensures safe and efficient electrical connections. Compliant with RoHS and REACH-SVHC regulations, it meets industry standards for environmental protection.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Spring Clamp Connection
Connection Data Connection Type 2
Spring Clamp Connection
Connection Data Maximum Fine Stranded Cross Section
2.5 mm²
Connection Data Maximum Solid Cross Section
2.5 mm²
Connection Data Minimum Fine Stranded Cross Section
0.13 mm²
Connection Data Minimum Solid Cross Section
0.13 mm²
Connection Data Wire Strip Length
10 mm
General Brands
Wieland
General Color
Gray
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKMF 2,5/15
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
2.5 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
5.1 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
35 mm
Technical Data Maximum Rated Voltage
500 V
Technical Data Pollution Degree
3
Technical Data Rated Current
24 A
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
26-12 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
26-12 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
20 A
Technical Data Ulcsa Factory Wiring Current
20 A
Technical Data Ulcsa Field Wiring Current
20 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
