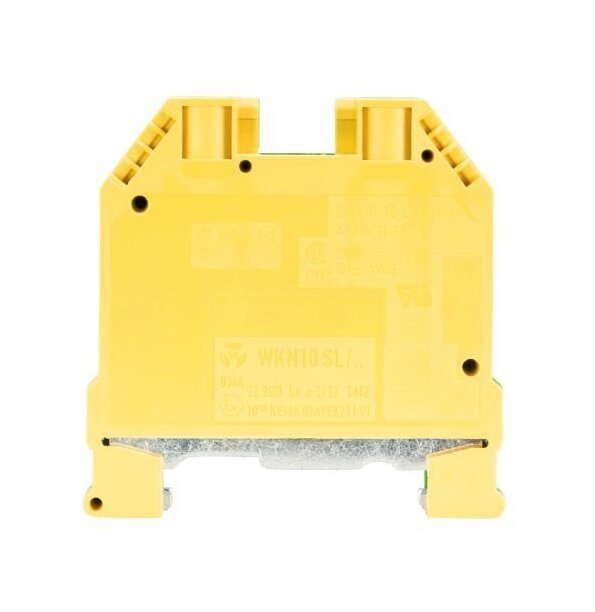

Wieland WKN 10 SL Earth Terminal Block
Wieland WKN 10 SL Earth Terminal Block
SKU:DIN-52143d
Secure DIN Rail earth terminal block with 10mm² cross-section, V0 inflammability class, and RoHS compliance.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Wieland WKN 10 SL Earth Terminal Block
$14.99
Quantity: 1
Claim Your Seller Account
Wieland WKN 10 SL Earth Terminal Block
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland WKN 10 SL Earth Terminal Block is a high-quality screw connection ground terminal designed for DIN Rail TS35 mounting. With a nominal cross-section of 10 mm² and versatile clamp positions, this terminal block ensures secure electrical connections. It meets stringent industry standards with its V0 inflammability class, 800V maximum rated voltage, and compliance with RoHS and REACH-SVHC standards for environmental safety. Ideal for both consumer and institutional buyers requiring reliable and compliant earth terminal blocks.
Product Specifications
Classification Eclass 81 Classification
27141141
Classification Etim 30 Classification
EC000901
Classification Etim 40 Classification
EC000901
Classification Etim 50 Classification
EC000901
Classification Etim 60 Classification
EC000901
Classification Etim 70 Classification
EC000901
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
10 mm²
Connection Data Maximum Solid Cross Section
10 mm²
Connection Data Maximum Stranded Cross Section
16 mm²
Connection Data Minimum Fine Stranded Cross Section
2.5 mm²
Connection Data Minimum Solid Cross Section
1.5 mm²
Connection Data Minimum Stranded Cross Section
16 mm²
Connection Data Torque Conductor Mounting
2 N·m
Connection Data Torque Rail Mounting
1.2 N·m
Connection Data Wire Strip Length
13 mm
General Brands
Wieland
General Color
Green/Yellow
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKN 10 SL
General Mounting Method
TS35
General Nominal Cross Section
10 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
10 mm
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Closing Plate Required
No
Technical Data Length
54 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
