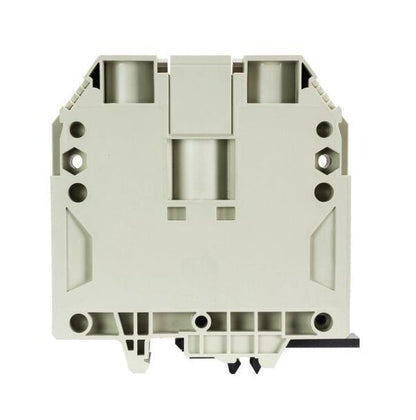

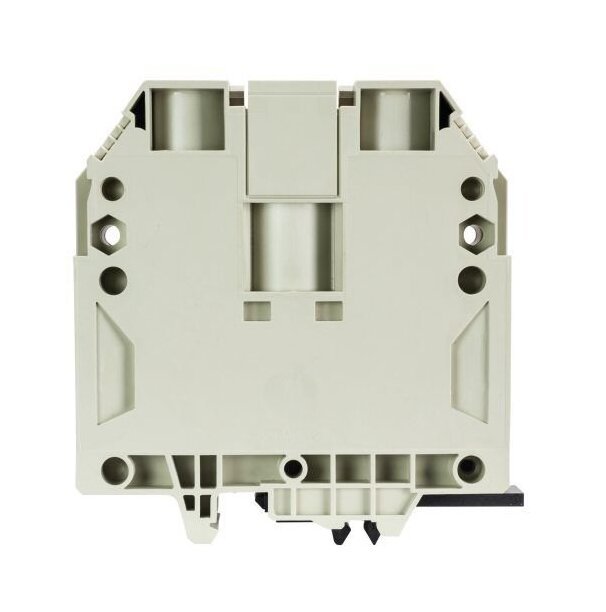

Wieland WKN 150 Feed-Through Terminal Block
Wieland WKN 150 Feed-Through Terminal Block
SKU:DIN-280558
High-performance Wieland WKN 150 Feed-Through Terminal Block for electrical installations. 150 mm² cross-section, V0 inflammability, and RoHS compliant.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Wieland WKN 150 Feed-Through Terminal Block
$59.99
Quantity: 1
Claim Your Seller Account
Wieland WKN 150 Feed-Through Terminal Block
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland WKN 150 Feed-Through Terminal Block is a premium solution for electrical installations, featuring a nominal cross section of 150 mm² and a robust PA666 insulating housing. With a rated current of 309 A and a maximum voltage of 1000 V, this terminal block ensures reliable performance. It is designed for easy mounting on TS 35/TS 32 rails, offering secure screw connections and meeting V0 inflammability standards. Compliant with RoHS with exceptions and REACH-SVHC duty-to-declare requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
185 mm²
Connection Data Maximum Solid Cross Section
150 mm²
Connection Data Minimum Fine Stranded Cross Section
35 mm²
Connection Data Minimum Solid Cross Section
35 mm²
Connection Data Wire Strip Length
30 mm
General Brands
Wieland
General Color
Gray
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKN 150 /U/V0
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
150 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
28 mm
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Closing Plate Required
No
Technical Data Length
96 mm
Technical Data Maximum Rated Voltage
1000 V
Technical Data Pollution Degree
3
Technical Data Rated Current
309 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
2/0 AWG | 350 KCMIL
Technical Data Ulcsa Voltage Canadian Standards Association Csa
1000 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
