Wieland WKN 16 DS Feed-Through Terminal Block
Wieland WKN 16 DS Feed-Through Terminal Block
SKU:DIN-41f6a3
High-performance Wieland WKN 16 DS Feed-Through Terminal Block for secure power distribution on DIN rails. RoHS compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland WKN 16 DS Feed-Through Terminal Block
$29.99
Quantity: 1
Claim Your Seller Account
Wieland WKN 16 DS Feed-Through Terminal Block
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

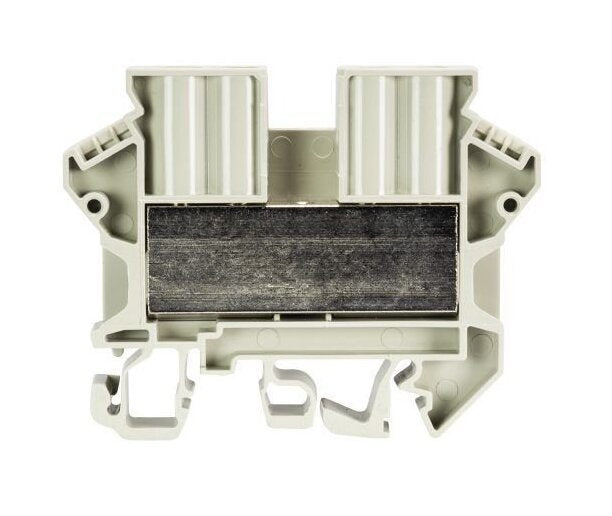

The Wieland WKN 16 DS Feed-Through Terminal Block is a reliable solution designed for seamless integration into electrical installations. With a nominal cross section of 16 mm² and a rated current of 76 A, this terminal block ensures efficient power distribution. Its screw connection design allows for secure installations on TS 35/TS 32 DIN rails. The terminal block meets RoHS conformity standards with exceptions and is compliant with lead restrictions, making it an environmentally conscious choice.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
16 mm²
Connection Data Maximum Solid Cross Section
10 mm²
Connection Data Maximum Stranded Cross Section
25 mm²
Connection Data Minimum Fine Stranded Cross Section
1.5 mm²
Connection Data Minimum Solid Cross Section
1.5 mm²
Connection Data Minimum Stranded Cross Section
16 mm²
Connection Data Wire Strip Length
18 mm
General Brands
Wieland
General Color
Gray
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKN 16 DS
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
16 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
12 mm
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Closing Plate Required
Yes
Technical Data Length
68 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Current
76 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Factory Wiring Current
65 A
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
