Wieland WKN 35 SL Earth Terminal Block for DIN Rail
Wieland WKN 35 SL Earth Terminal Block for DIN Rail
SKU:DIN-272413
Premium Wieland WKN 35 SL Earth Terminal Block for reliable grounding on DIN Rails.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland WKN 35 SL Earth Terminal Block for DIN Rail
$29.99
Quantity: 1
Claim Your Seller Account
Wieland WKN 35 SL Earth Terminal Block for DIN Rail
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

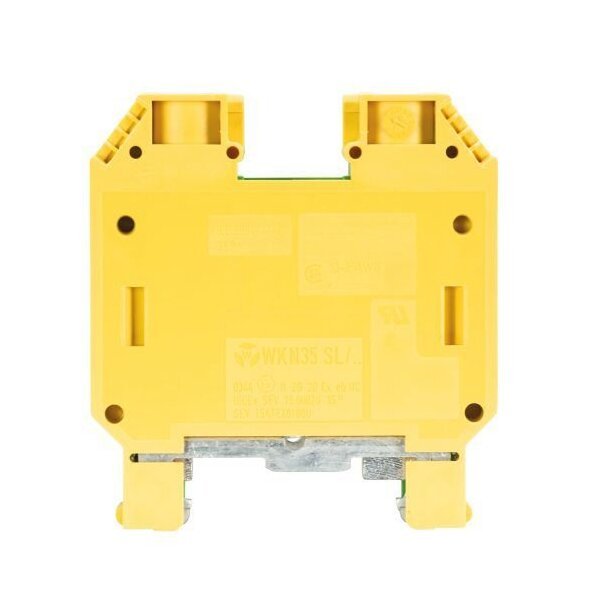

The Wieland WKN 35 SL Earth Terminal Block is a high-quality grounding solution for electrical installations. It features a nominal cross-section of 35 mm² and a green-yellow color for easy identification. With one level and two clamp positions per level, this terminal block offers secure connections. The terminal block is flame-retardant and explosion-tested, meeting V0 inflammability standards. It is designed for DIN rail mounting and is suitable for solid and stranded wire connections ranging from 10 mm² to 50 mm². Additionally, it complies with RoHS and REACH-SVHC regulations, making it an environmentally conscious choice.
Product Specifications
Classification Eclass 81 Classification
27141141
Classification Etim 30 Classification
EC000901
Classification Etim 40 Classification
EC000901
Classification Etim 50 Classification
EC000901
Classification Etim 60 Classification
EC000901
Classification Etim 70 Classification
EC000901
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
35 mm²
Connection Data Maximum Solid Cross Section
10 mm²
Connection Data Maximum Stranded Cross Section
50 mm²
Connection Data Minimum Fine Stranded Cross Section
10 mm²
Connection Data Minimum Solid Cross Section
10 mm²
Connection Data Minimum Stranded Cross Section
16 mm²
Connection Data Torque Conductor Mounting
3 N·m
Connection Data Torque Rail Mounting
3 N·m
Connection Data Wire Strip Length
20 mm
General Brands
Wieland
General Color
Green/Yellow
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKN 35 SL
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
35 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
16 mm
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Closing Plate Required
No
Technical Data Maximum Rated Voltage
800 V
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
