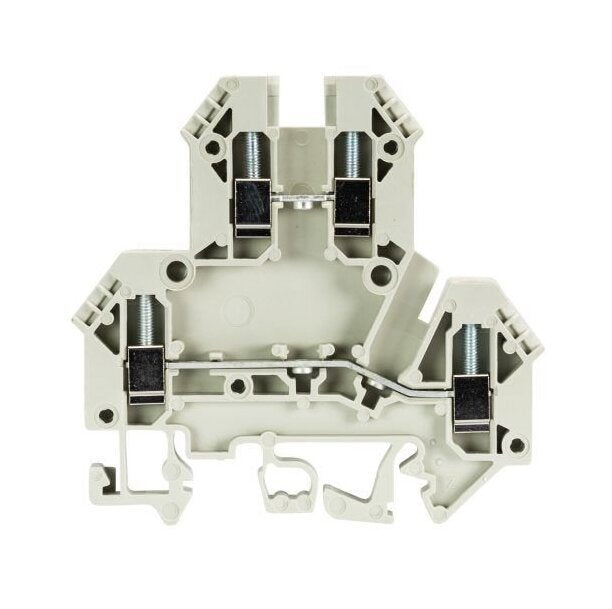

The Wieland WKN2,5E/U V0 Multi-Tier Terminal Block is a versatile duo feed-through terminal featuring screw connections, suitable for mounting on TS 35/TS 32 rails. With a nominal cross-section of 2.5 mm² and a width of 5 mm, this terminal block in gray color is designed with precision and reliability in mind. It offers two levels with two clamp positions each, ideal for secure electrical installations. Meeting rated current of 24 A, maximum rated voltage of 500 V, and rated impulse voltage of 6 kV, this terminal block ensures efficient and safe electrical connections. The V0 inflammability class of the insulating material according to UL94 standards guarantees high safety standards.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Connection Cross Section
2.5 mm²
Connection Data Maximum Solid Cross Section
4 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.14 mm²
Connection Data Minimum Solid Cross Section
0.2 mm²
Connection Data Torque Conductor Mounting
0.4 N·m
Connection Data Wire Strip Length
8 mm
General Color
Gray
General Explosion Tested Version Ex E
No
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
2.5 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
2
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
5 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
65.8 mm
Technical Data Maximum Rated Voltage
500 V
Technical Data Pollution Degree
3
Technical Data Rated Current
24 A
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
22-12 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-12 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
25 A
Technical Data Ulcsa Current Factory Wiring
25 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
