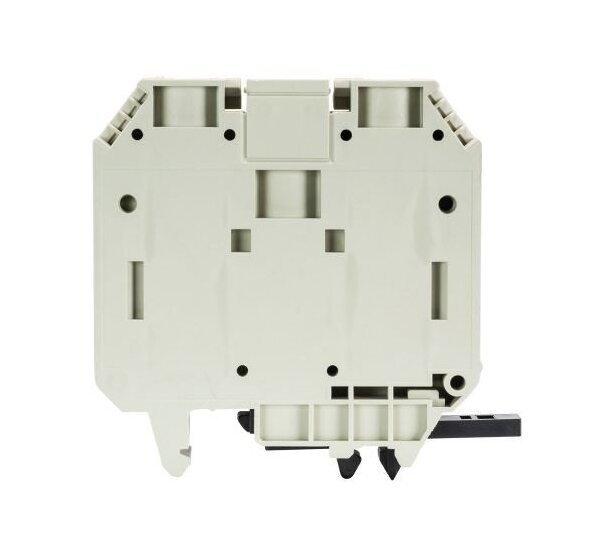

Wieland WKN35/U V0 Feed-Through Terminal Block
Wieland WKN35/U V0 Feed-Through Terminal Block
SKU:DIN-a0f73d
Reliable Wieland WKN35/U V0 Feed-Through Terminal Block for secure DIN rail installations. Meets UL and CSA standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland WKN35/U V0 Feed-Through Terminal Block
$29.99
Quantity: 1
Claim Your Seller Account
Wieland WKN35/U V0 Feed-Through Terminal Block
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland WKN35/U V0 Feed-Through Terminal Block is a high-quality DIN rail terminal block designed for efficient electrical installations. With a 35 mm² nominal cross-section and a sturdy gray PA666 insulating housing, this terminal block ensures reliable connections. It features a screw connection for easy mounting on TS 35/TS 32 rails, rated for a maximum current of 125 A and voltage of 800 V, meeting rigorous UL and CSA standards. The V0 inflammability class and explosion-tested design make it ideal for industrial environments where safety and performance are paramount.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
35 mm²
Connection Data Maximum Solid Cross Section
10 mm²
Connection Data Maximum Stranded Cross Section
50 mm²
Connection Data Minimum Fine Stranded Cross Section
10 mm²
Connection Data Minimum Solid Cross Section
10 mm²
Connection Data Minimum Stranded Cross Section
16 mm²
Connection Data Wire Strip Length
18 mm
General Brands
Wieland
General Color
Gray
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKN35/U /V0
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
35 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
16 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
No
Technical Data Length
70.6 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Current
125 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
10-1/0 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
10 - 1/0 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
150 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
