Wieland WKN70/U /V0 Feed-Through Terminal Block
Wieland WKN70/U /V0 Feed-Through Terminal Block
SKU:DIN-a8f37e
Reliable Wieland Feed-Through Terminal Block for industrial applications, 70 mm², 192 A, V0 insulation, UL/CSA certified.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Wieland WKN70/U /V0 Feed-Through Terminal Block
$45.99
Quantity: 1
Claim Your Seller Account
Wieland WKN70/U /V0 Feed-Through Terminal Block
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

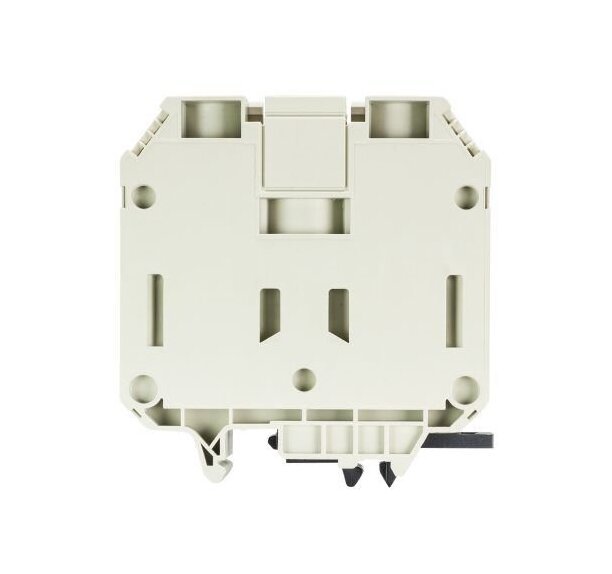

The Wieland WKN70/U /V0 Feed-Through Terminal Block is a high-quality solution designed for secure electrical installations in industrial environments. With a nominal cross-section of 70 mm², rated current of 192 A, and maximum rated voltage of 800 V, this terminal block ensures reliable performance. Its V0 inflammability class insulation material and UL/CSA certifications guarantee safety and compliance with industry standards. Easy to install on DIN Rail (Top Hat Rail), this gray terminal block is ideal for applications requiring a robust and dependable connection.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
95 mm²
Connection Data Maximum Solid Cross Section
70 mm²
Connection Data Minimum Fine Stranded Cross Section
16 mm²
Connection Data Minimum Solid Cross Section
10 mm²
Connection Data Wire Strip Length
24 mm
General Brands
Wieland
General Color
Gray
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WKN70/U /V0
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
70 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
24 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
No
Technical Data Length
76.8 mm
Technical Data Maximum Rated Voltage
800 V
Technical Data Pollution Degree
3
Technical Data Rated Current
192 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
6-2/0 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
6-2/0 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
170 A
Technical Data Ulcsa Factory Wiring Current
175 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
