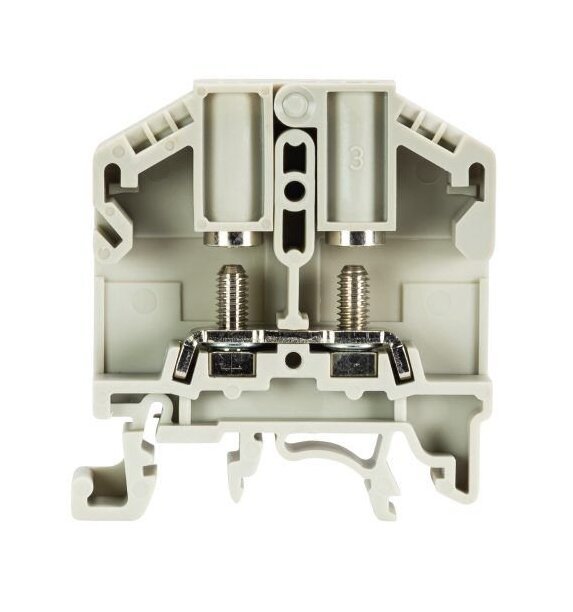

The Wieland WRT 6 Stud Terminal Block is a reliable ring lug terminal block designed for secure mounting on TS 35 DIN rails. With a robust construction and a nominal cross-section of 6 mm², this terminal block offers a voltage rating of up to 1000V and a rated current of 41A, meeting stringent industry standards for safety and performance. Featuring bolt connections for efficient installation, this gray terminal block is flame-retardant (V0 rated) with insulating housing made of PA666 material, ensuring durability and reliability in diverse electrical applications.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Bolt Connection
Connection Data Connection Type 2
Bolt Connection
Connection Data Maximum Fine Stranded Cross Section
6 mm²
Connection Data Maximum Stranded Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
1.5 mm²
Connection Data Minimum Stranded Cross Section
1.5 mm²
Connection Data Torque Conductor Mounting
1.2 N·m
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WRT 6
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
6 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Width Grid Dimension
11 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
46 mm
Technical Data Maximum Rated Voltage
1000 V
Technical Data Pollution Degree
3
Technical Data Rated Current
41 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-8 AWG
Technical Data Ulcsa Factory Wiring Current
50 A
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
