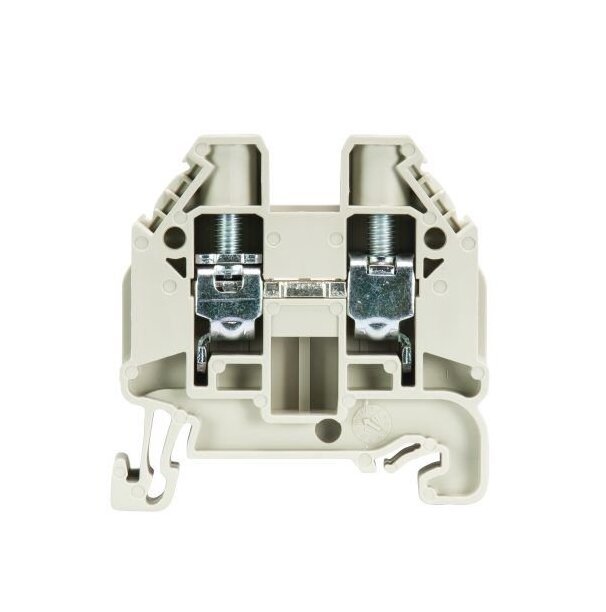

Wieland WT 10 Feed-Through Terminal Block for DIN Rail
Wieland WT 10 Feed-Through Terminal Block for DIN Rail
SKU:DIN-1be164
Wieland WT 10 Feed-Through Terminal Block: 10 mm², 57 A, DIN Rail Mounting, V0 Inflammability, RoHS & REACH Compliant
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland WT 10 Feed-Through Terminal Block for DIN Rail
$29.99
Quantity: 1
Claim Your Seller Account
Wieland WT 10 Feed-Through Terminal Block for DIN Rail
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland WT 10 Feed-Through Terminal Block is a top-tier solution for electrical installations, offering a nominal cross-section of 10 mm² with a rated current of 57 A and a maximum rated voltage of 1000 V. This gray terminal block features a single level with two clamp positions per level, making it versatile yet secure for various conductor cross-sections. With a mounting method compliant with DIN Rail standards, this terminal block ensures easy and reliable installations. Its V0 inflammability class and compliance with RoHS and REACH-SVHC standards solidify its safety and environmental credentials.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Conductor Cross Section Flexible Strande
10
Connection Data Maximum Fine Stranded Cross Section
16 mm²
Connection Data Maximum Solid Cross Section
16 mm²
Connection Data Maximum Stranded Cross Section
16 mm²
Connection Data Minimum Conductor Cross Section Flexible Strande
0.5
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Minimum Stranded Cross Section
16 mm²
Connection Data Wire Strip Length
13 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WT 10
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
10 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
10 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
48 mm
Technical Data Maximum Rated Voltage
1000 V
Technical Data Pollution Degree
3
Technical Data Rated Current
57 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
20-6 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
20-6 AWG
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
