Wieland WT 10 PE Ground Terminal Block for DIN Rail
Wieland WT 10 PE Ground Terminal Block for DIN Rail
SKU:DIN-9455ca
High-quality Wieland ground terminal block for secure electrical connections on TS 35. Nominal cross section 10 mm², green/yellow color, V0 inflammability class, RoHS compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland WT 10 PE Ground Terminal Block for DIN Rail
$24.99
Quantity: 1
Claim Your Seller Account
Wieland WT 10 PE Ground Terminal Block for DIN Rail
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

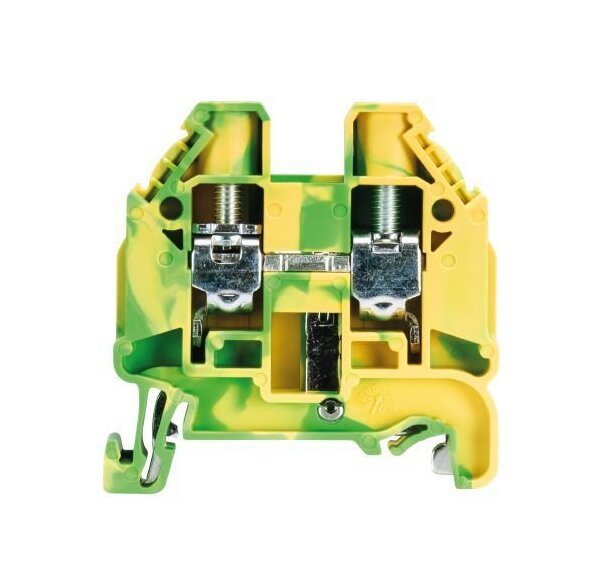

The Wieland WT 10 PE Ground Terminal Block is a high-quality solution for electrical installations, featuring a nominal cross section of 10 mm². With a green/yellow color for easy identification, this terminal block is designed for precise connections with screw connections for both solid and stranded conductors. Meeting industry-leading standards like V0 inflammability class and RoHS compliance, it ensures safety and reliability in diverse applications.
Product Specifications
Classification Eclass 81 Classification
27141141
Classification Etim 30 Classification
EC000901
Classification Etim 40 Classification
EC000901
Classification Etim 50 Classification
EC000901
Classification Etim 60 Classification
EC000901
Classification Etim 70 Classification
EC000901
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
16 mm²
Connection Data Maximum Flexible Stranded Conductor Cross Sectio
10 mm²
Connection Data Maximum Solid Cross Section
16 mm²
Connection Data Maximum Stranded Cross Section
16 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Flexible Stranded Conductor Cross Sectio
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Minimum Stranded Cross Section
16 mm²
Connection Data Torque Conductor Mounting
1.2 N·m
Connection Data Wire Strip Length
13 mm
General Brands
Wieland
General Color
Green/Yellow
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WT 10 PE
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
10 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
10 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
48 mm
Technical Data Maximum Rated Voltage
1000 V
Technical Data Pollution Degree
3
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
20-6 AWG
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
