Wieland WT 4 D2/2 Feed-Through Terminal Block - DIN Rail Mount
Wieland WT 4 D2/2 Feed-Through Terminal Block - DIN Rail Mount
SKU:DIN-155f16
Reliable Wieland Feed-Through Terminal Block with DIN Rail Mounting, 4 mm² cross-section, 32A current, 500V voltage. UL94 V0 compliant for safety.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland WT 4 D2/2 Feed-Through Terminal Block - DIN Rail Mount
$24.99
Quantity: 1
Claim Your Seller Account
Wieland WT 4 D2/2 Feed-Through Terminal Block - DIN Rail Mount
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

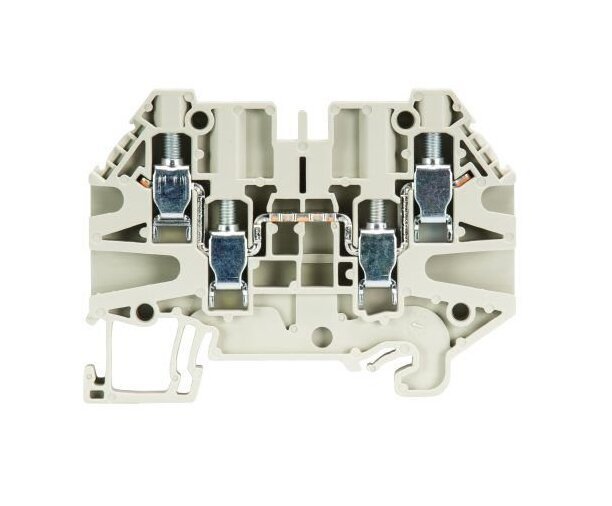

The Wieland WT 4 D2/2 Feed-Through Terminal Block is a reliable solution for electrical installations. With a 4 mm² nominal cross-section, rated current of 32 A, and maximum voltage of 500 V, it ensures efficient power transmission. This gray terminal block features 1 level with 4 clamp positions per level, screw connections, and DIN rail mounting for easy installation. Compliant with UL94 V0 inflamability class, it meets rigorous safety standards for peace of mind. Perfect for industrial applications requiring secure and durable connections, the WT 4 D2/2 is a top choice for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Conductor Cross Section Flexible Strande
4
Connection Data Maximum Fine Stranded Cross Section
6 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Conductor Cross Section Flexible Strande
0.5
Connection Data Minimum Fine Stranded Cross Section
0.14 mm²
Connection Data Minimum Solid Cross Section
0.14 mm²
Connection Data Wire Strip Length
9 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WT 4 D2/2
General Mounting Method
DIN Rail (Top Hat Rail)
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
4
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
6 mm
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Height
49 mm
Technical Data Length
68 mm
Technical Data Maximum Rated Voltage
500 V
Technical Data Pollution Degree
3
Technical Data Rated Current
32 A
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
26-10 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
26-10 AWG
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
Technical Data Width
6 mm
